Key data at a glance

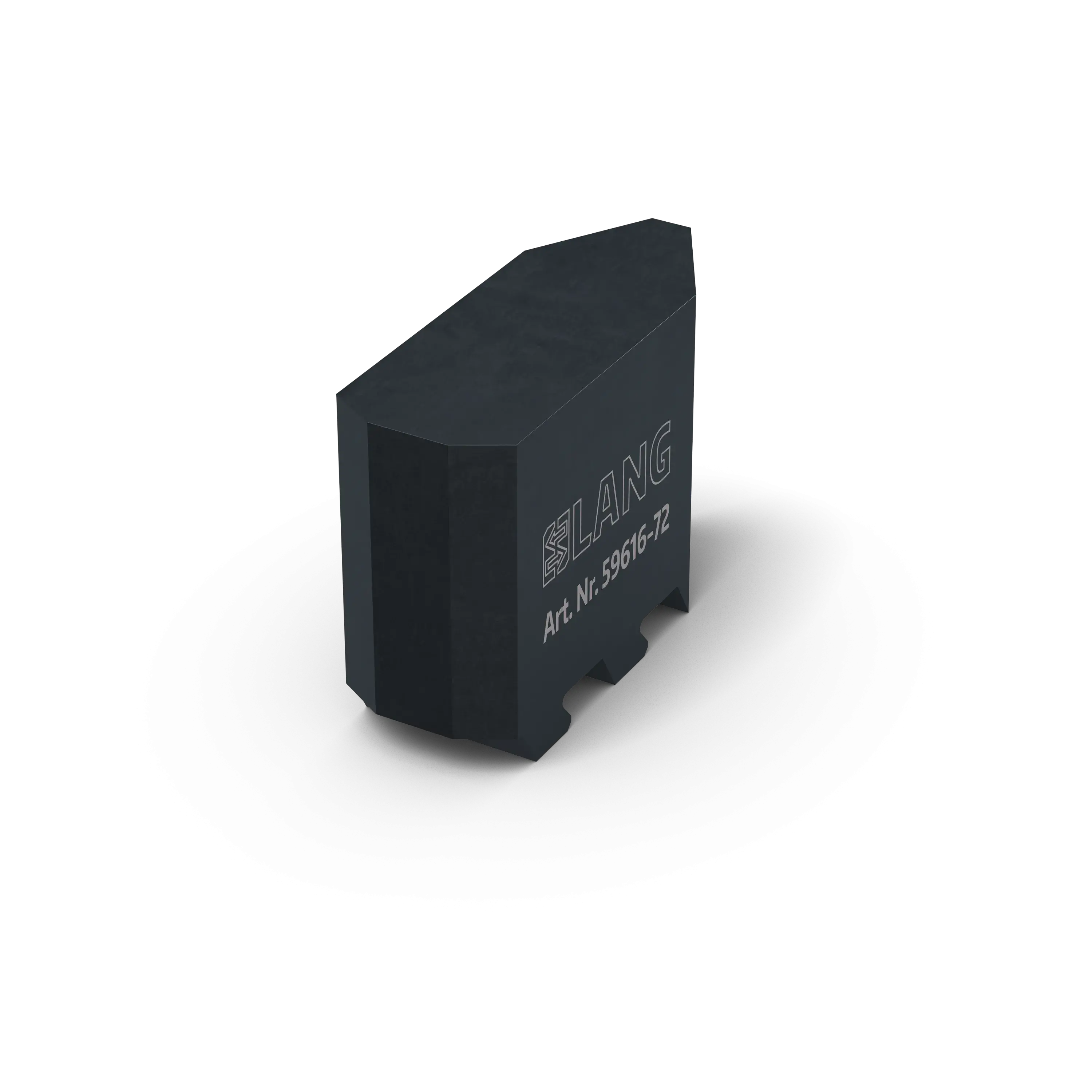

The soft, individually modifiable steel top jaws are suitable for internal clamping of deformation-sensitive components with a diameter of 10 - 190 mm. They are attached to the base jaws (Art. No. 59616-30), which are available especially for internal clamping, completely without tools using an innovative click system.
Clamping range
ø 10 - 190 mm (0.39" - 7.48")
Clamping method
by friction
Dimensions
Jaw width: 18 mm (0.71")
Jaw height: 29 mm (1.14")
Jaw height: 29 mm (1.14")
Workpiece shape
cylindrical
Packaging Unit
6 Set
Weight
1.11 kg (2.45 lbs)
Material
Steel
