Key data at a glance

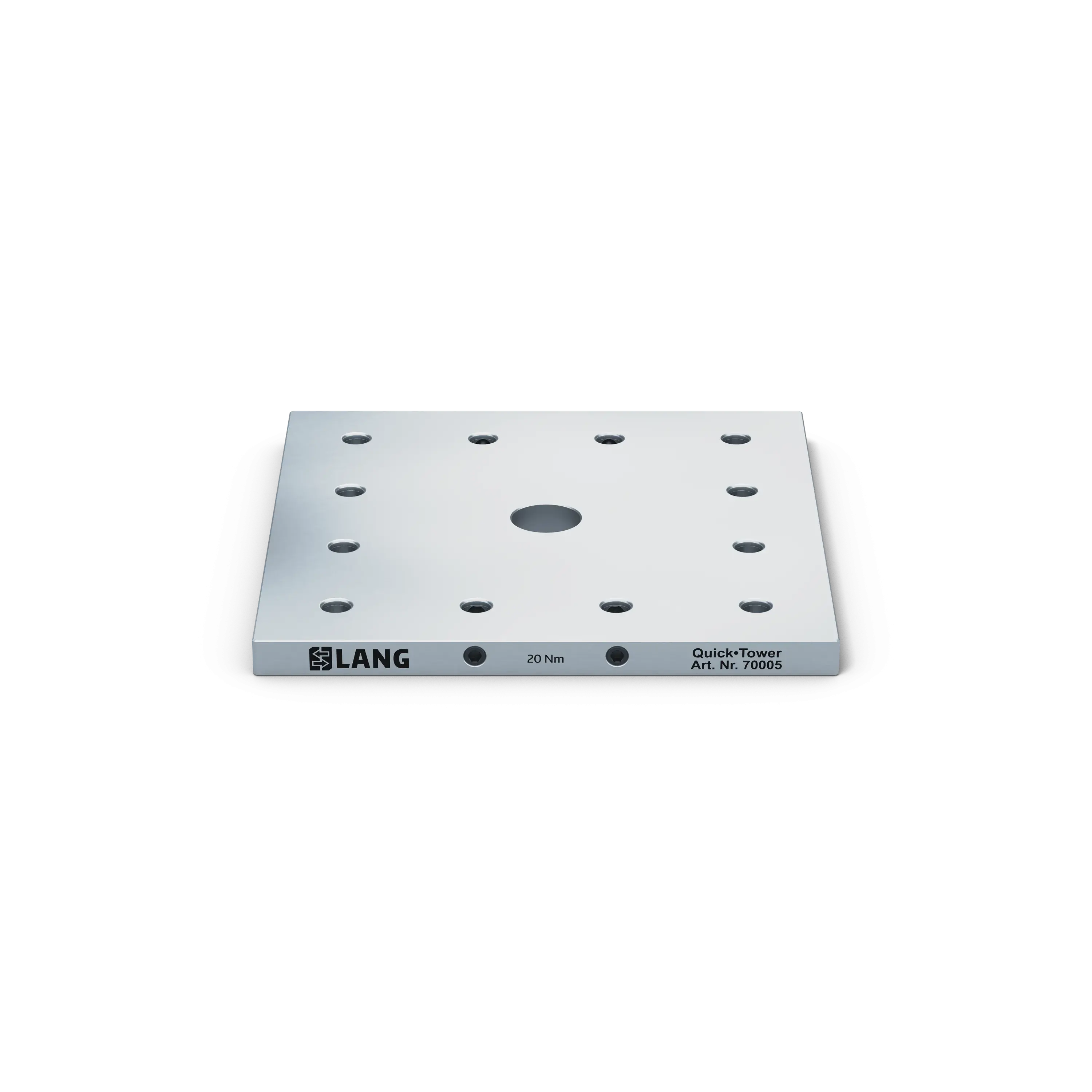

As a mounting system on the machine table, the Quick•Tower base plate is a slightly more cost-effective alternative to Quick•Point® (multiple) grid plates. It serves as a connecting element between the machine table and a standard Quick•Tower if the tower is not to be dismantled and no zero-point clamping system is to be used. In this version of the Quick•Tower base plate, mounting holes still have to be drilled for mounting to the machine table.
Dimensions
394 x 394 x 27 mm (15.51" x 15.51" x 1.06")
Mounting bores
No, but possible (service)
Keyways
No, but possible (service)
Packaging Unit
1 Piece
Weight
31.4 kg (69.23 lbs)
Material
Steel
More features:
注意：
Tightening torque of the side screws: 20 Nm
