Key data at a glance

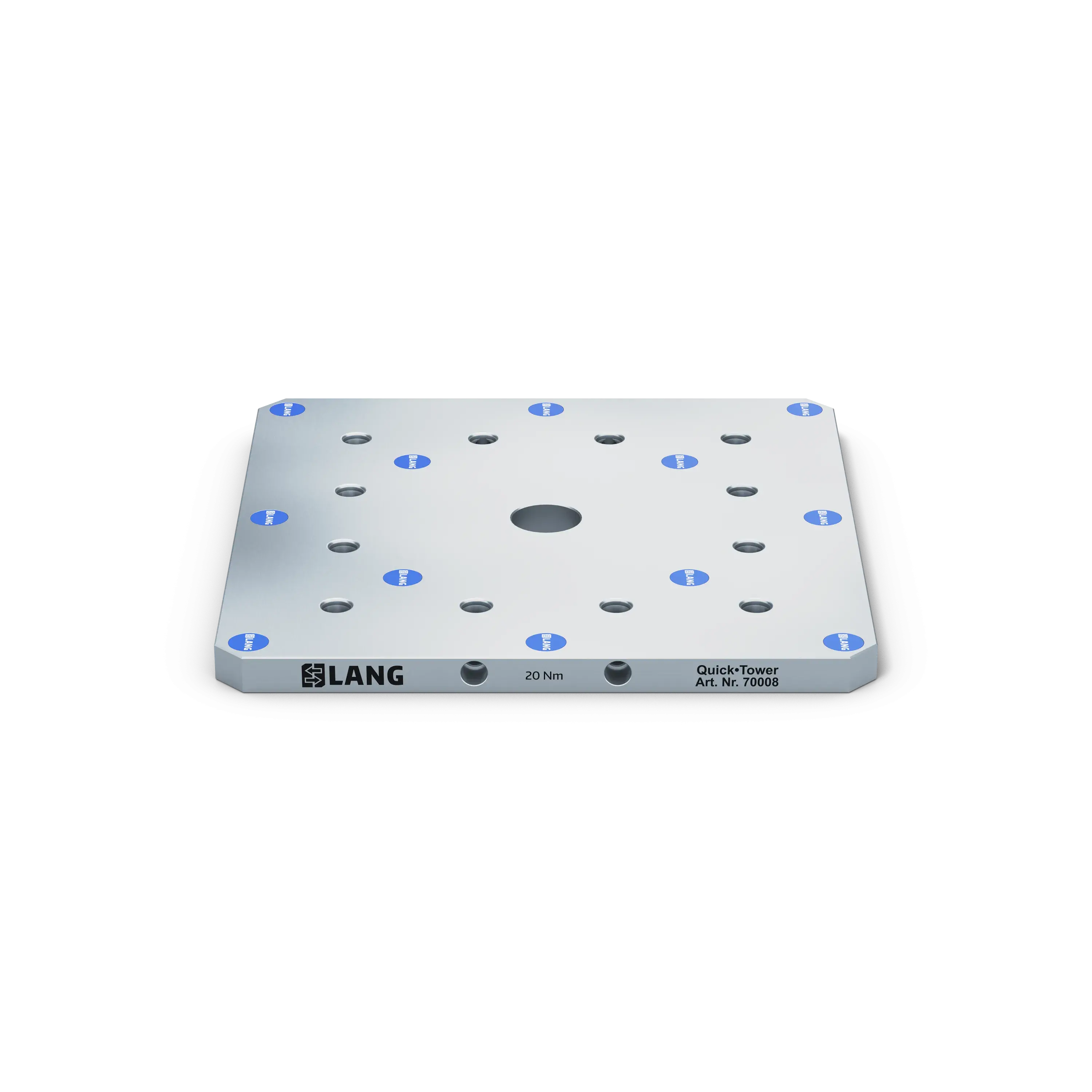

As a mounting system on the machine table, the Quick•Tower base plate is a slightly more cost-effective alternative to Quick•Point® (multiple) grid plates. It serves as a connecting element between the machine table and a standard Quick•Tower if the tower is not to be dismantled and no zero-point clamping system is to be used. This variant of the Quick•Tower base plate contains 12x M16 mounting holes at a distance of 200 mm.
Dimensions
446 x 446 x 27 mm (17.56" x 17.56" x 1.06")
Mounting bores
for 100 mm groove spacing
Keyways
No, but possible (service)
Packaging Unit
1 Set
Weight
38.4 kg (84.66 lbs)
Material
Steel
More features:
注意：
Tightening torque of the side screws: 20 Nm
供货范围：
