Key data at a glance

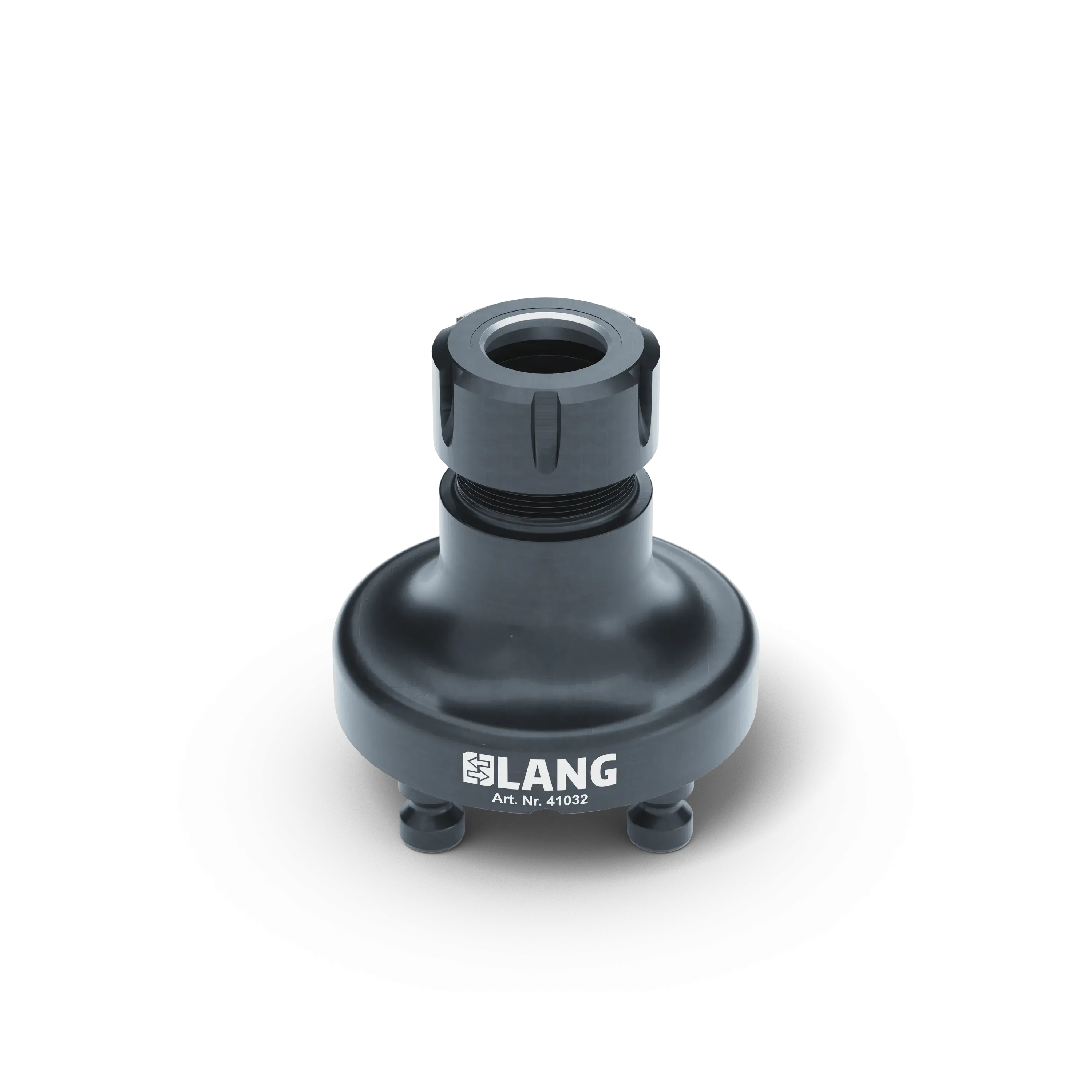

The compact collet chuck with Quick•Point® zero-point interface is designed for milling round components with clamping diameters of 3 - 20 mm and uses commercially available ER-32 collets. Its slim design offers excellent ergonomic features and ensures optimum accessibility in milling operations.
Dimensions
⌀ 98 x 92 mm (3.86" x 3.62")
Clamping range
ø 3 - 20 mm (0.12" - 0.79")
Clamping method
by friction
Workpiece shape
cylindrical
Packaging Unit
1 Piece
Weight
1.9 kg (4.19 lbs)
Material
Steel
More features:
供货范围：
1 x Collet chuck
1 x Standard clamping nut
