Key data at a glance

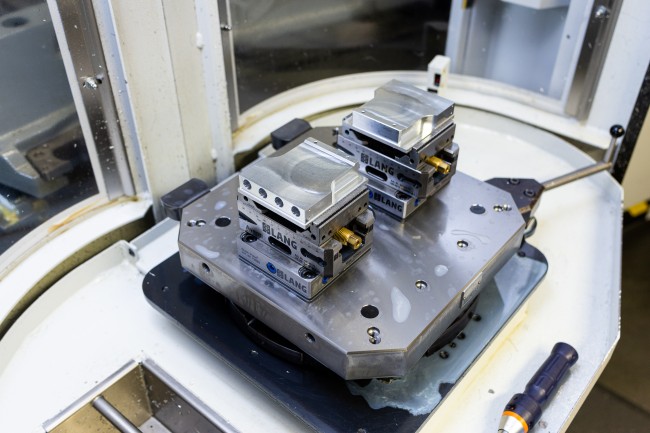

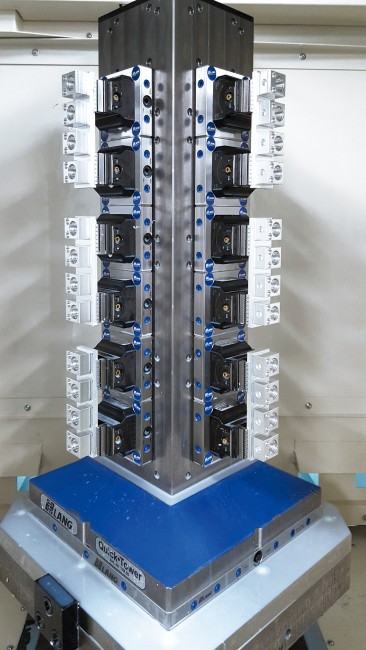

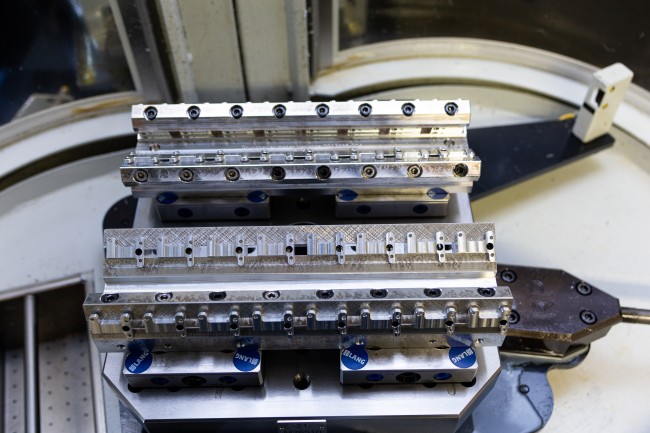

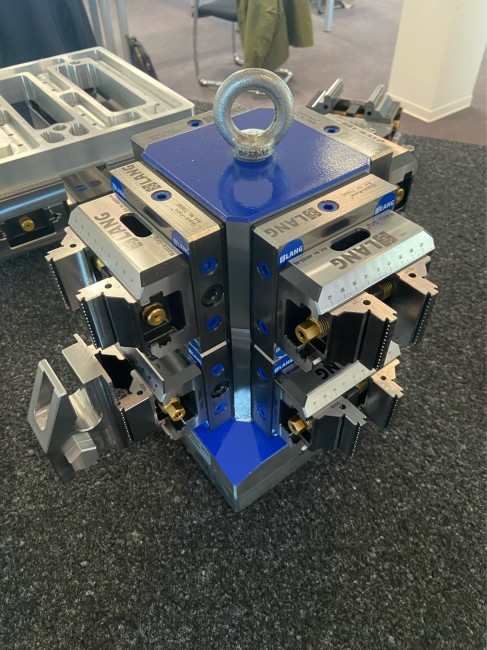

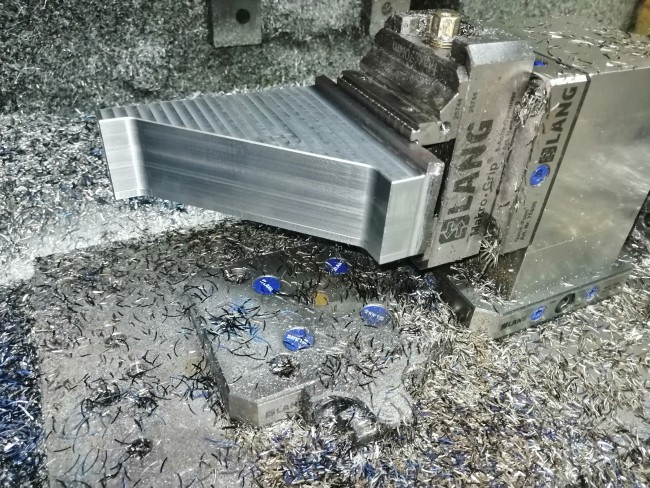

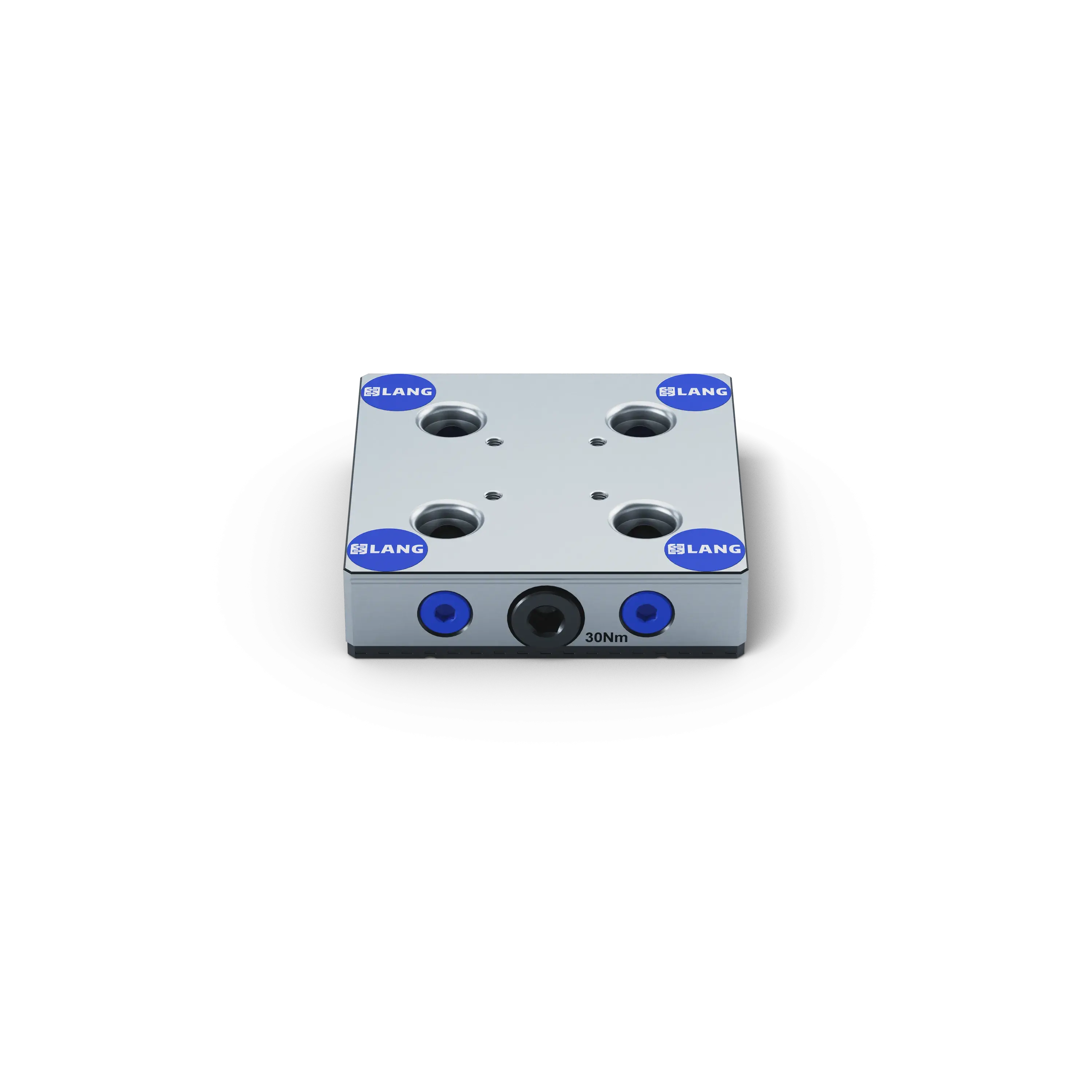

With external dimensions of 104 x 104 mm, this grid plate is one of the smallest in the Quick•Point® series. It has mounting holes for M10 / M12 cylinder head screws. Its hole spacing of 82 x 82 mm is suitable for both dimensions of the Quick•Tower clamping tower for horizontal machining centers, as well as for the smaller 3- and 4-sided clamping towers MT3 and MT4. Customers also like to use it on their own trunnions, towers and angular clamps.
Dimensions
104 x 104 x 27 mm (4.09" x 4.09" x 1.06")
Clamping edge included
No
Cross-plate grid possible
Yes
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 82 x 82 mm hole spacing (suitable for Quick-Tower)
Keyways
No, not possible
M5 indexing bores
Yes
Packaging Unit
1 Piece
Weight
1.82 kg (4.01 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
4 x Socket head screw M10 x 35
