Key data at a glance

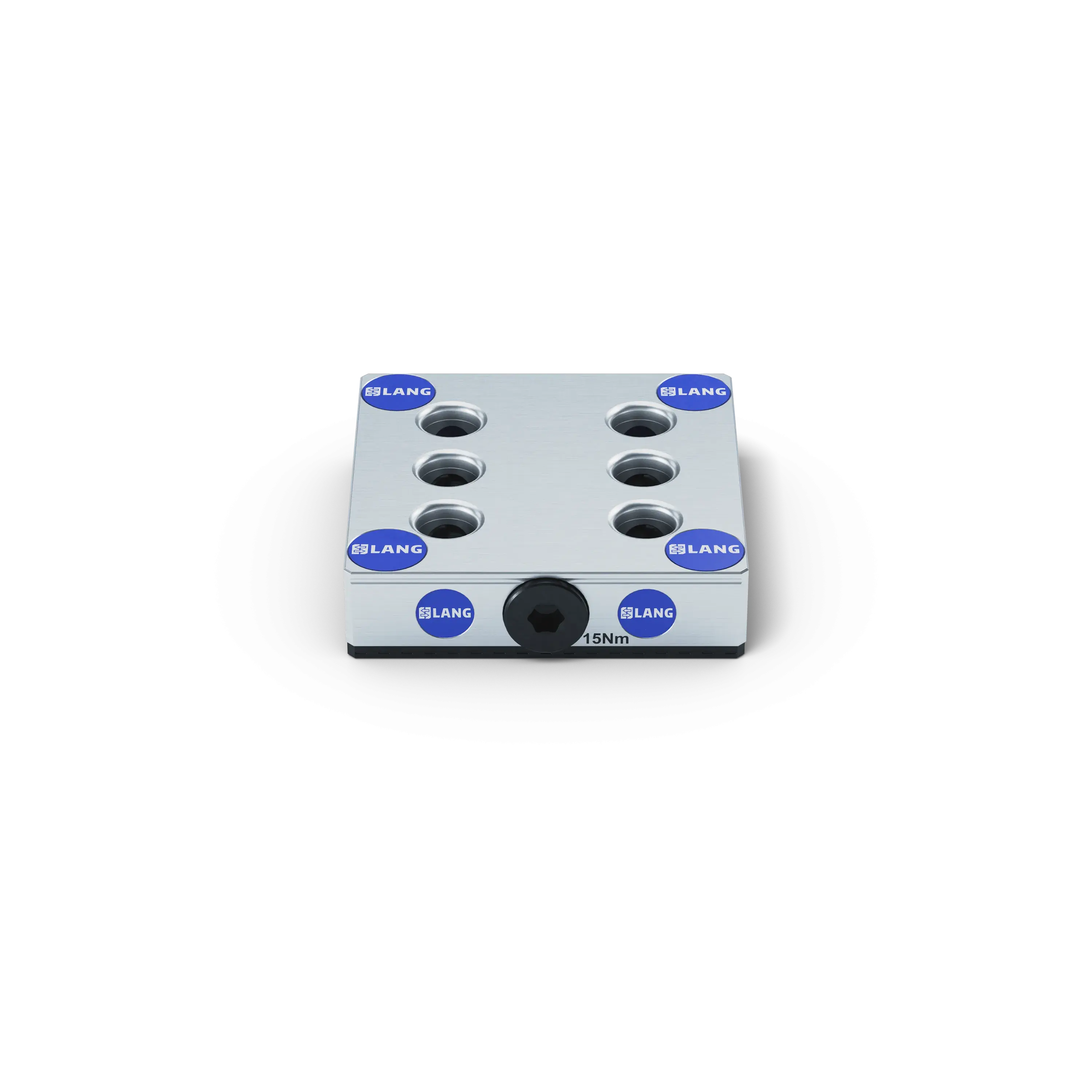

The new Quick•Point® duo6 grid plate is equipped with 6 zero point mounting holes, which allows a total of 3 possible mounting options. Two Makro•Grip® 46 micro clamped side by side, one Makro•Grip® 46 micro centered or one regular Makro•Grip® 5-Axis Vise (46 or 77) with four clamping studs. This zero point plate has predefined mounting holes in an 82 mm grid, which allows it to be mounted on the Quick•Tower horizontal clamping tower, for example, without modification.
Dimensions
104 x 104 x 27 mm (4.09" x 4.09" x 1.06")
Clamping edge included
No
Cross-plate grid possible
Yes
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 82 x 82 mm hole spacing (suitable for Quick-Tower)
Keyways
No, not possible
M5 indexing bores
No, but not necessary
Packaging Unit
1 Piece
Weight
1.84 kg (4.06 lbs)
Material
Steel
More features:
供货范围：
1 x Zero Point Plate
4 x Quick•Point® Kunststoffabdeckungen ø 20 mm (Artikelnummer 45008-20)
4 x Zylinderschraube M10 x 35
