Key data at a glance

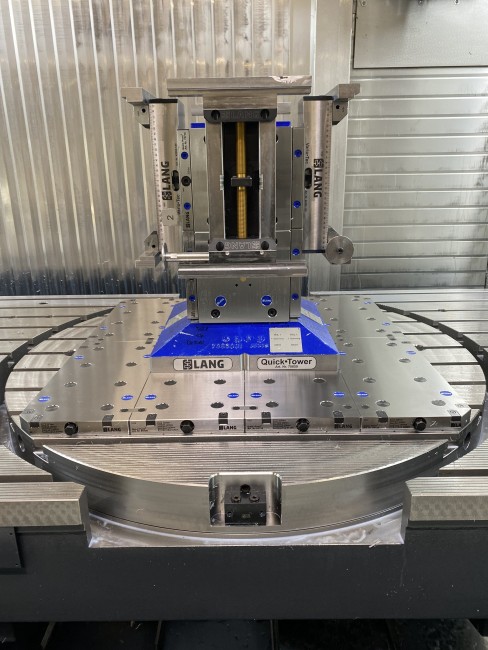

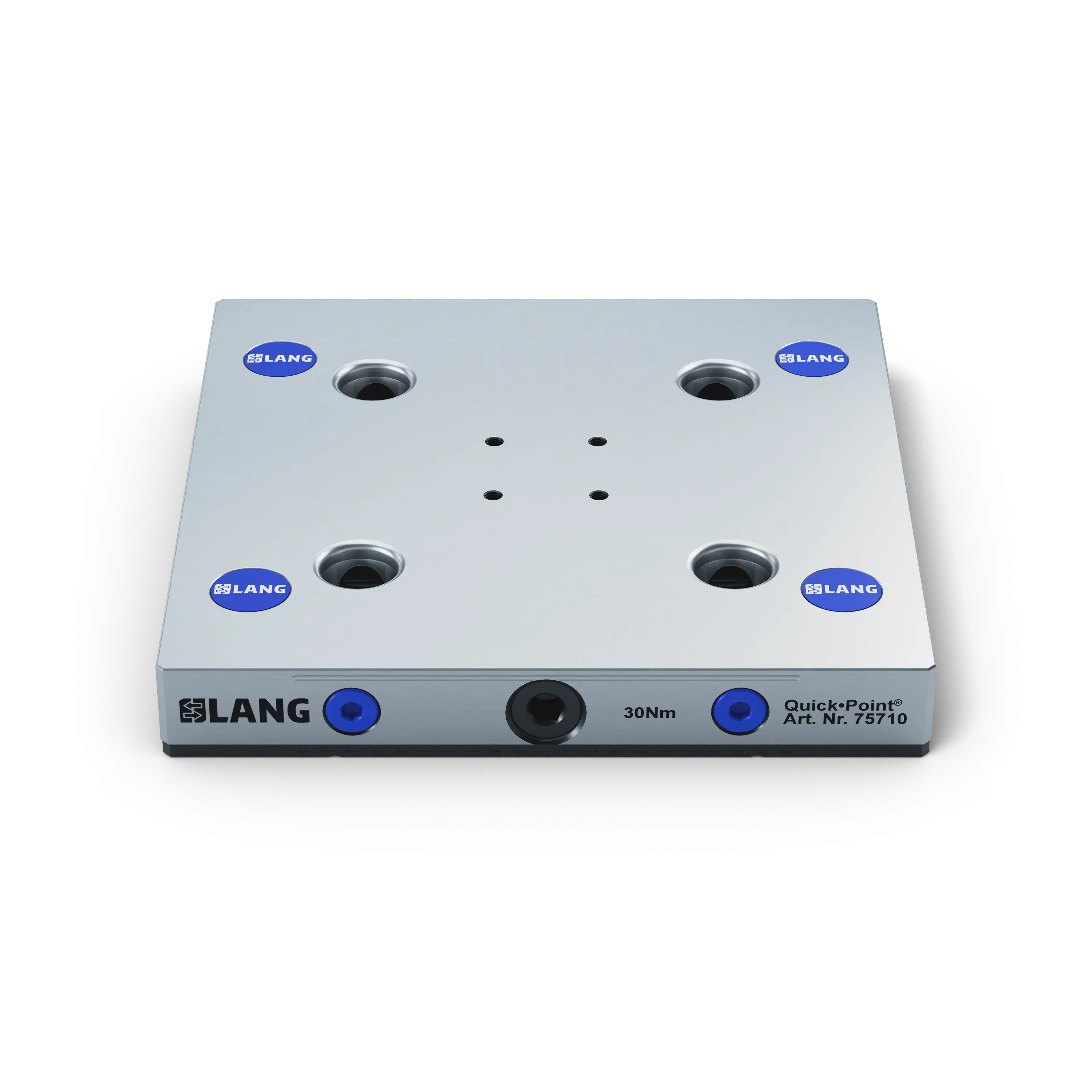

Just like the smaller version with the Art. No. 75600, this grid plate also has predefined mounting holes for the Quick•Tower spaced at 150 x 120 mm. Thanks to its fits, it can be plugged in via bushings and aligned with high precision on the Quick•Tower.
Dimensions
192 x 192 x 27 mm (7.56" x 7.56" x 1.06")
Clamping edge included
No
Cross-plate grid possible
Yes
Clamping type
Single clamping
Clamping units
1-fold
Mounting bores
for 150 x 120 mm hole spacing (suitable for Quick-Tower)
Keyways
No, not possible
M5 indexing bores
Yes
Packaging Unit
1 Piece
Weight
7.2 kg (15.87 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
4 x Socket head screw M10 x 35
