Key data at a glance

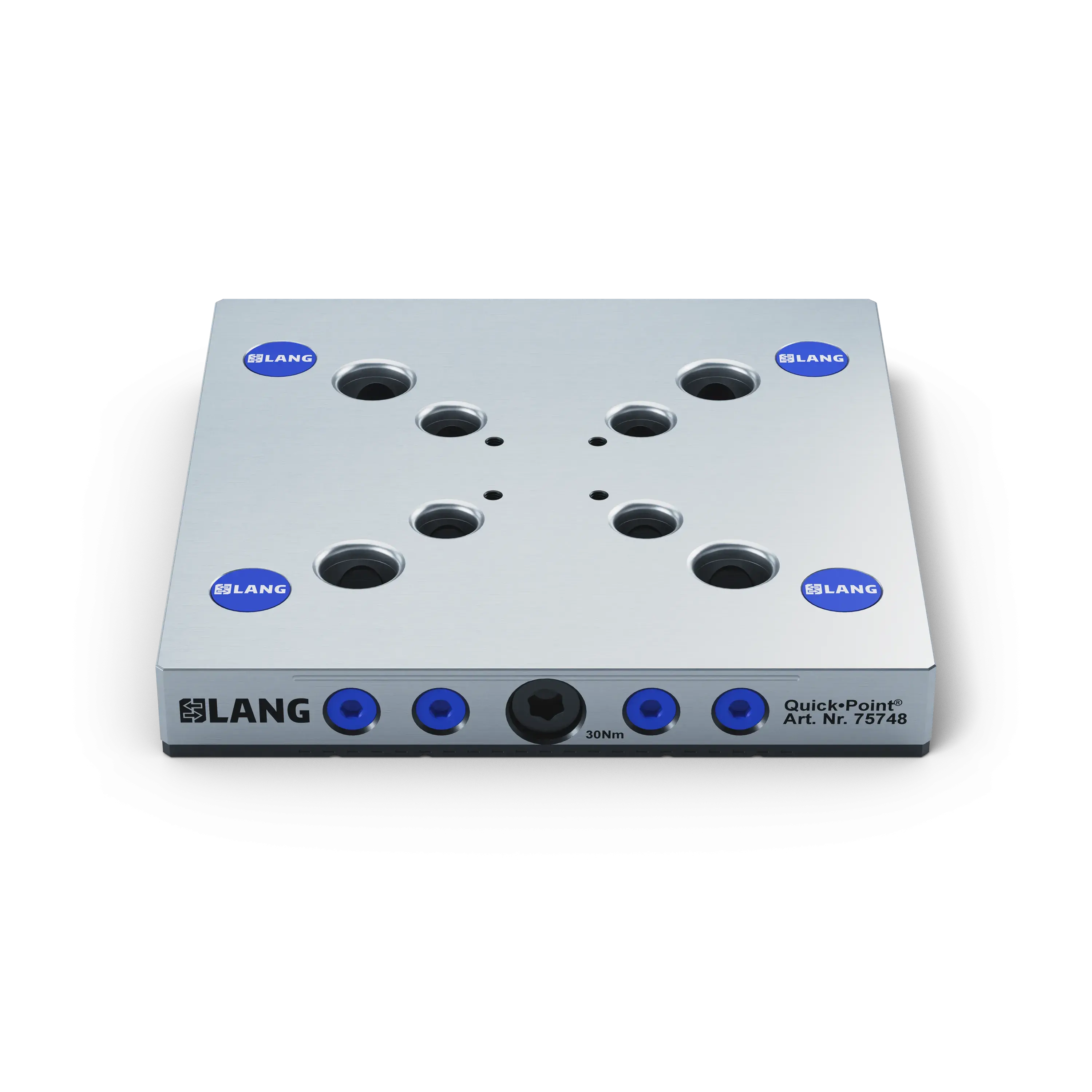

The Quick•Point®52 / 96 combo grid plate is also available as a version with a prefabricated mounting bores for the Quick•Tower tombstone. The two grid sizes 52 mm and 96 mm in one zero-point plate provide the operator with unlimited choices of LANG workholding devices.
Dimensions
192 x 192 x 27 mm (7.56" x 7.56" x 1.06")
Clamping type
Single clamping
Mounting bores
for 150 x 120 mm hole spacing (suitable for Quick-Tower)
Keyways
No, but not necessary
M5 indexing bores
Yes
Packaging Unit
1 Piece
Weight
6.6 kg (14.55 lbs)
Material
Steel
More features:
供货范围：
1 x Zero-Point plate
4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
4 x Socket head screw M10 x 35
