Key data at a glance

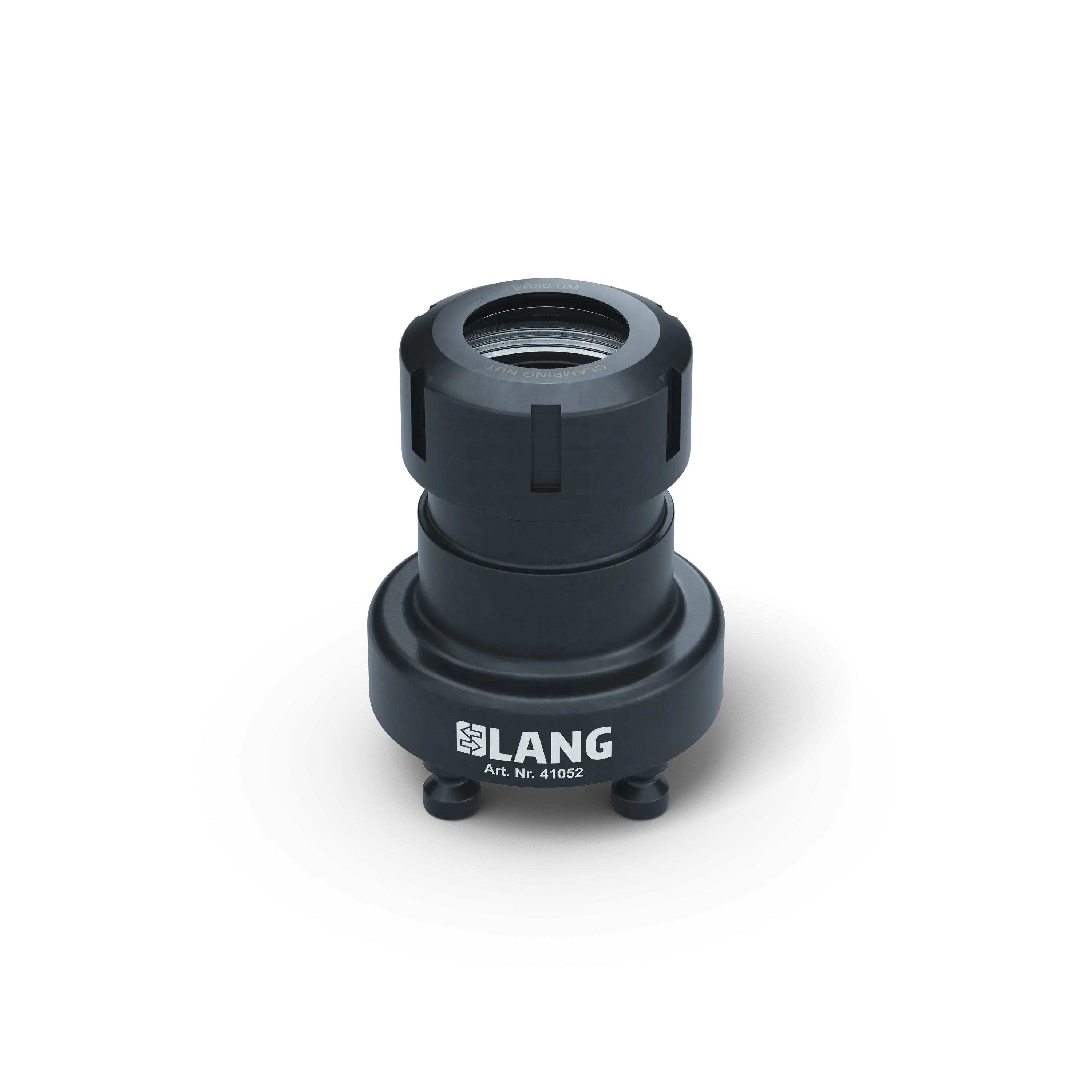

The compact collet chuck with Quick-Point® zero-point interface is designed for milling round components with clamping diameters of 6 - 34 mm and uses commercially available ER-50 collets. Its slim design offers excellent ergonomic features and ensures optimum accessibility in milling operations.
Dimensions
⌀ 99 x 111 mm (3.9" x 4.37")
Clamping range
ø 6 - 34 mm (0.24" - 1.34")
Clamping method
by friction
Workpiece shape
cylindrical
Packaging Unit
1 Piece
Weight
2.97 kg (6.55 lbs)
Material
Steel
More features:
供货范围：
1 x Collet chuck
1 x Standard clamping nut
