Key data at a glance

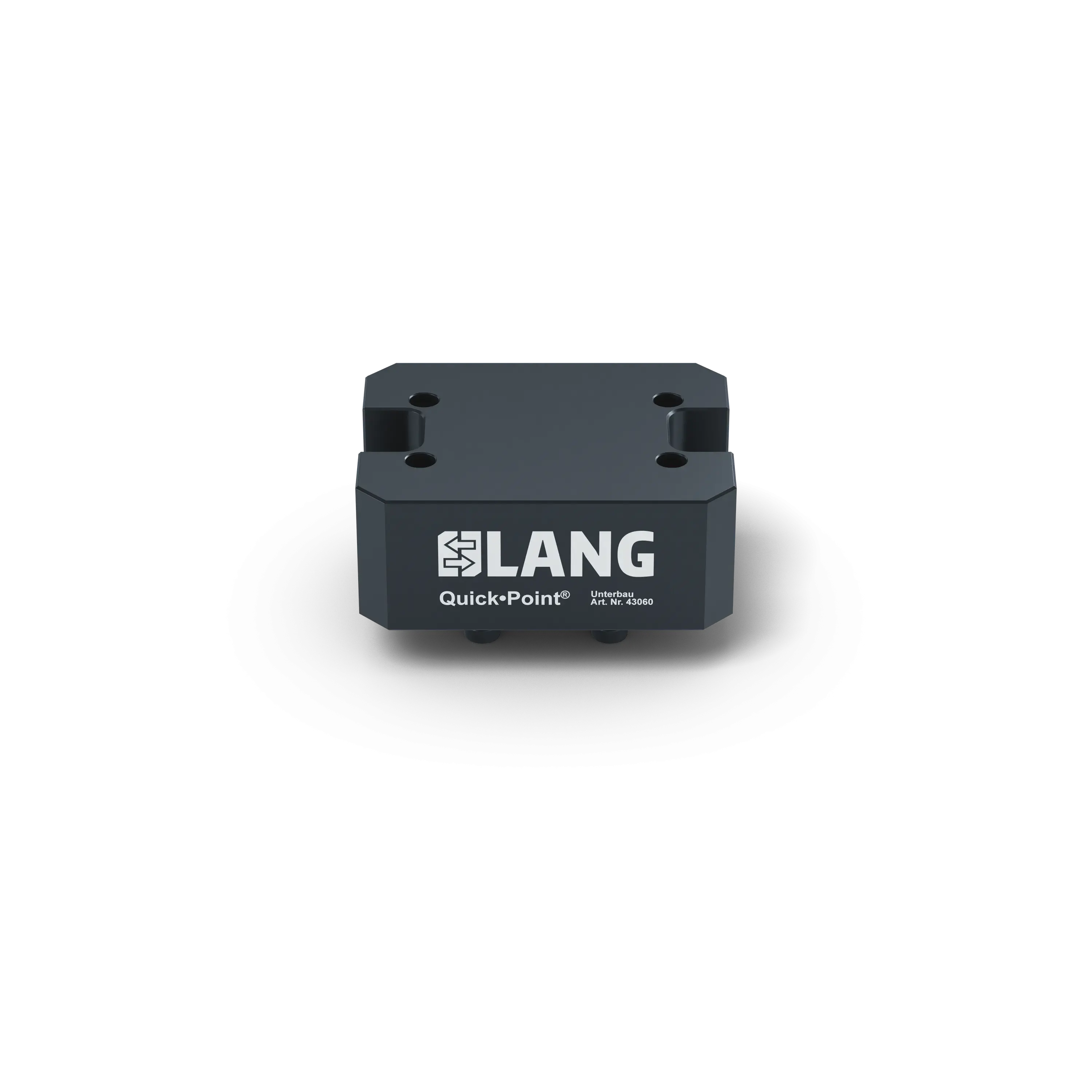

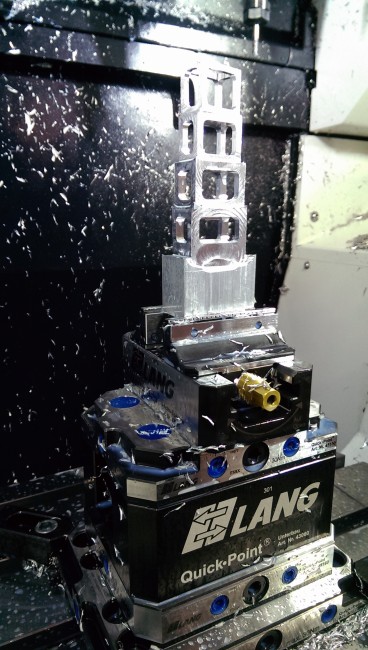

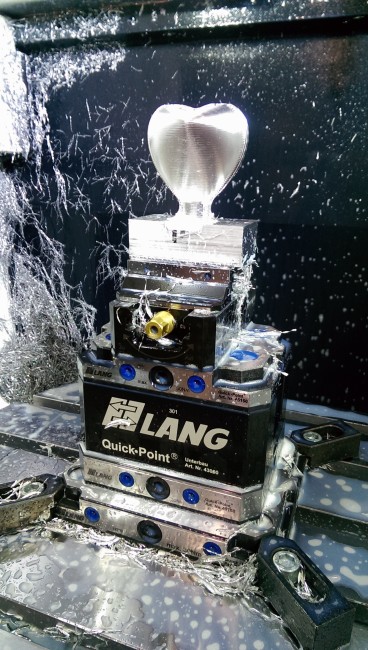

The riser creates additional distance to the machine table and reduces interfering contours in 5-sided machining. This riser is used together with the Quick•Point® zero point plate 45150, which is pinned to it via fitting bushes, aligned and then mounted with cylinder head screws. The riser can be equipped with Ø 16 mm as well as Ø 20 mm clamping studs, which makes it universally applicable in both systems - Quick•Point® 52 and 96. With the large clamping studs in its base, it can even be used as an adapter plate with the zero point plate mentioned above.
Dimensions
150 x 116 x 60 mm (5.91" x 4.57" x 2.36")
Packaging Unit
1 Piece
Weight
2.67 kg (5.89 lbs)
Material
Aluminum
More features:
供货范围：
1 x Riser
4 x Socket head screw M10 x 35
