Key data at a glance

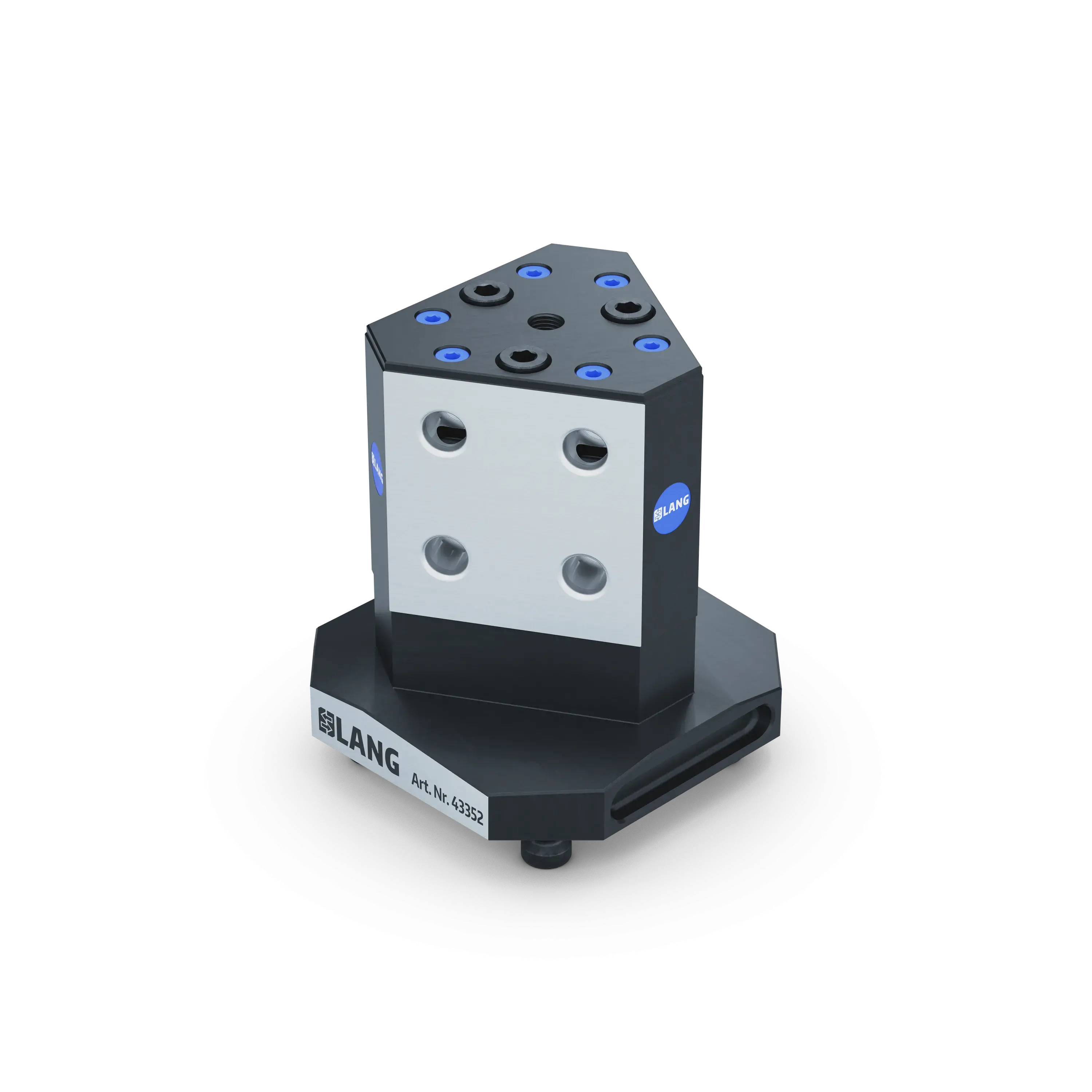

The Tri•Top returns in a fresh design! With its sturdy steel base body, the popular 3-face tombstone is a guarantee for maximum precision. Despite its robustness, the Tri-Top remains handy and has the same interference contours as its predecessor. The 3-fold zero point mounting, suitable for Makro•Grip® 46 and 77, reduces downtimes and tool changes in milling operations.
Dimensions foot
156 x 156 mm (6.14" x 6.14")
Total height
167 mm (6.57")
Type of machine
VMC
Packaging Unit
1 Piece
Weight
10 kg (22.05 lbs)
Material
Steel
More features:
注意：
Maximum vise length horizontally mounted: 130 mm Maximum vise lengt vertically mounted: 170 mm
