Key data at a glance

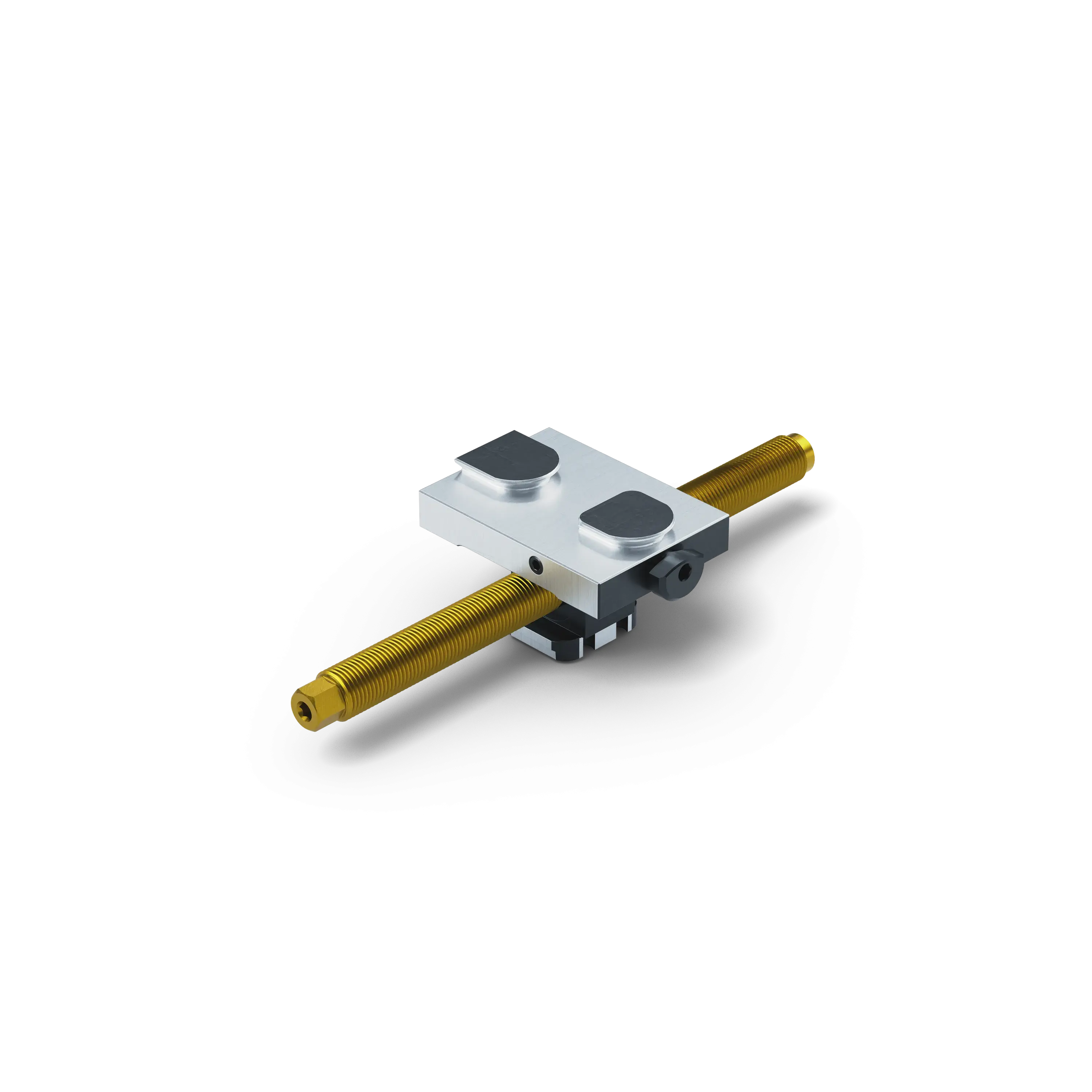

If required, the Avanti vise can be converted into a multiple clamp. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the contour clamp has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.
Spindle length
215 mm (8.46")
Thread pitch
M16 x 1.5
Dimensions
Jaw width: 77 mm (3.03")
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Piece
Weight
0.9 kg (1.98 lbs)
Material
Steel
