Key data at a glance

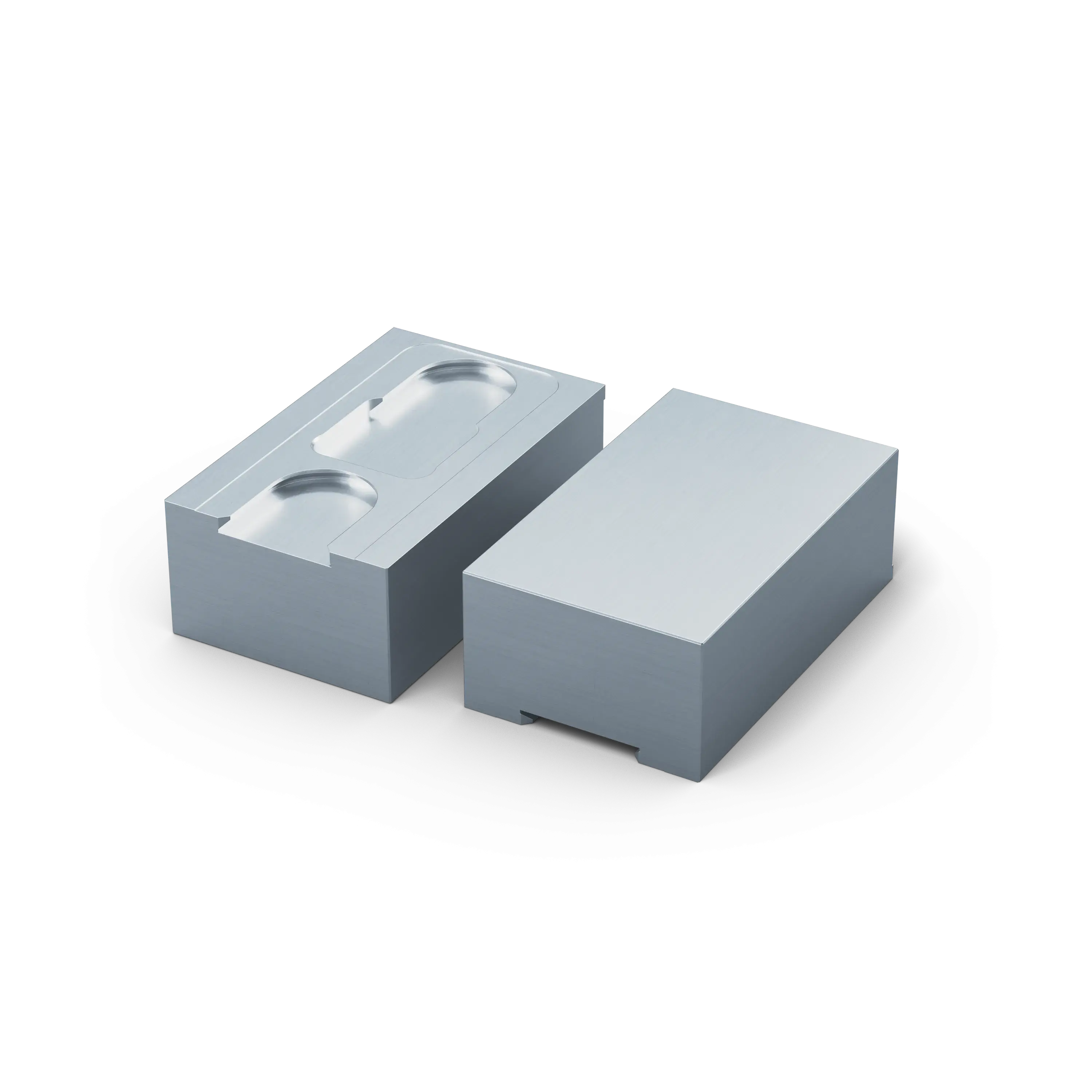

Avanti top jaws are available in steel and aluminium and are fixed to the patented interface of the base jaw by tightening a screw on the side with a pull-down effect. For the insertion of one or more contours, the complete volume of the soft top jaws can be used, the height of which is 46 mm. Higher top jaws with a height of 76 mm are also available for Avanti 125.
Dimensions
Jaw width: 126 mm (4.96")
Jaw length: 77 mm (3.03")
Jaw height: 46 mm (1.81")
Jaw length: 77 mm (3.03")
Jaw height: 46 mm (1.81")
Workpiece shape
cubic / cylindrical / asymmetric
Packaging Unit
1 Piece
Weight
1.19 kg (2.62 lbs)
Material
Aluminum
注意：
Avanti add-on jaws are sold as single pieces
