Quick•Point® 52, 5-Axis Riser-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

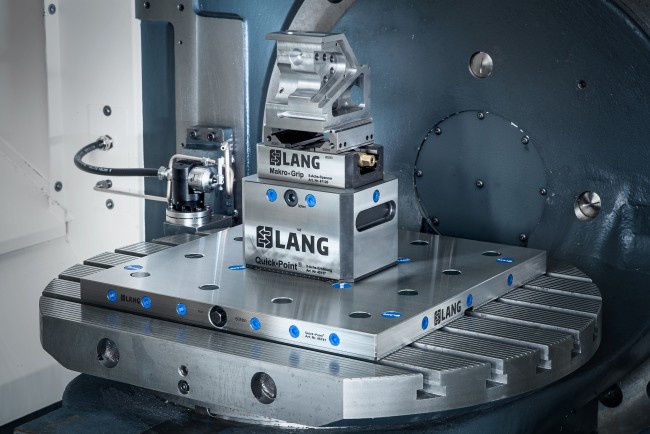

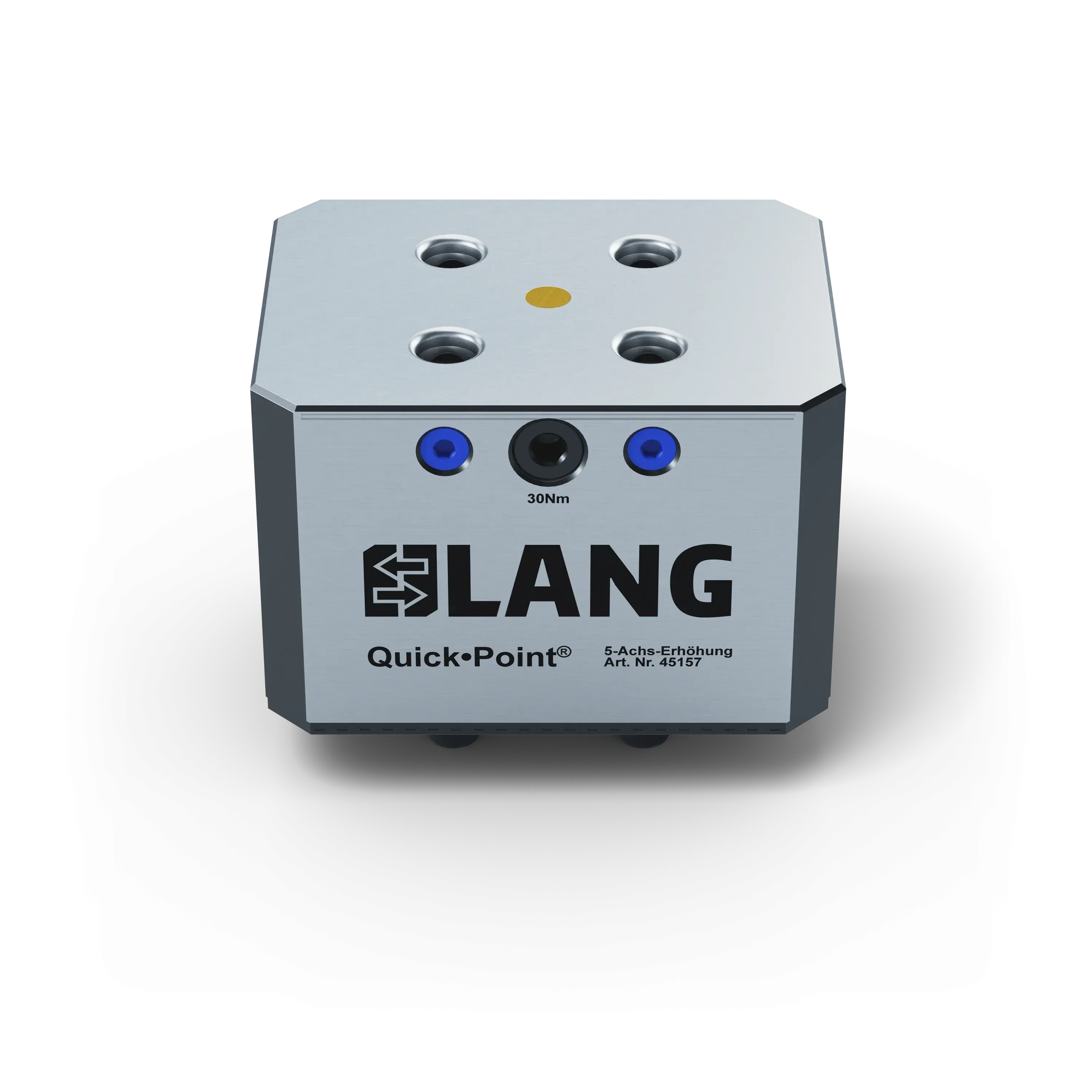

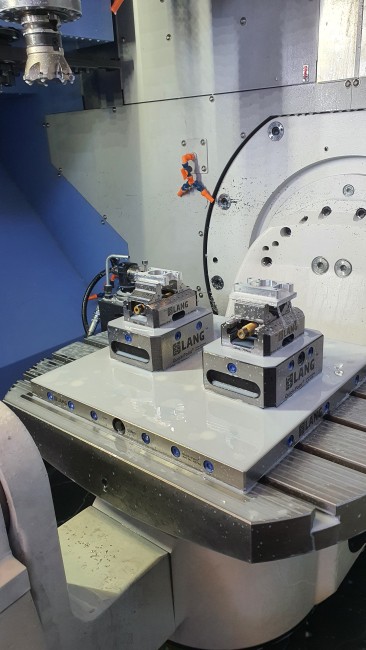

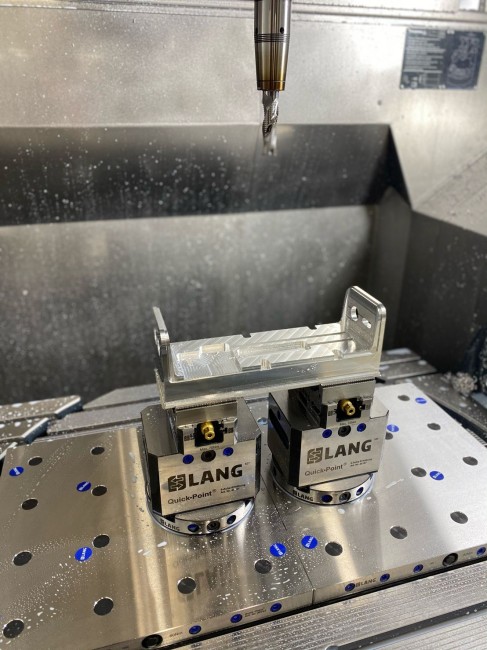

5-axis risers improve accessibility in 5-sided machining and, thanks to the integrated Quick•Point® clamping studs on their underside, quickly and precisely extend the zero-point clamping system on the machine table. Vises, fixtures or workpieces are clamped directly in the robust yet handy steel system body.

Dimensions

150 x 116 x 100 mm (5.91" x 4.57" x 3.94")

Packaging Unit

1 Piece

Weight

10 kg (22.05 lbs)

Material

Steel

More features:

Vise size

77

Size of compatible vise

Quick-Lock applicable

Yes

The fast actuation system can be attached

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

供货范围：

1 x 5-Axis Riser

4 x

45270: Clamping Studs, ø 16 mm, for 52 mm bolt distance

1 x

45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing, plastic (4 pcs.)

Benefits Quick•Point® Risers

Accessibility Increased accessibility for 5-axis machining
Modularity Fast and precise expansion of the zero-point system on the machine table
Handling Great handling characteristics thanks to low weights

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
