Key data at a glance

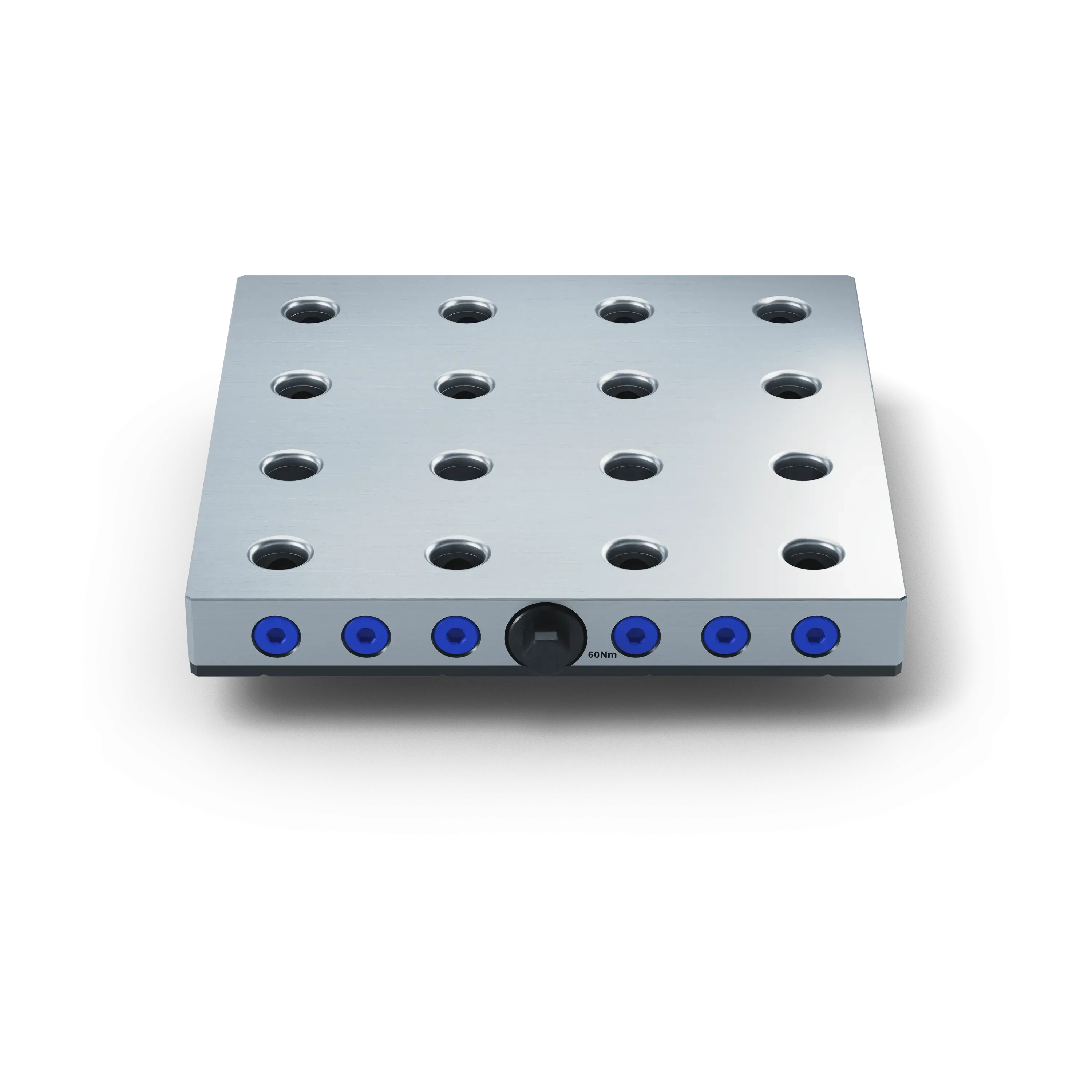

The 4-fold grid plate 52 is equipped as standard with clamping studs for the Quick•Point® 96 system and is also used as a receiver plate. This allows the operator to flexibly switch between single clamping with the large 96 mm zero-point grid and the multiple clamping of smaller components with the 52 mm zero-point grid. If the clamping studs are removed, the 4-fold grid plate 52 can be mounted directly on the machine table by inserting an individual hole pattern.

Dimensions

208 x 208 x 27 mm (8.19" x 8.19" x 1.06")

Cross-plate grid possible

Ja

Clamping type

Multi clamping

Clamping units

4-fold

Mounting bores

No, but possible (service)

Keyways

No, but not necessary

M5 indexing bores

No, but possible (service)

Packaging Unit

1 Piece

Weight

8.3 kg (18.3 lbs)

Material

Steel

More features:

Torque

60 Nm

Maximum allowed torque

Vise size

46 Micro / 46 / 77

Size of compatible vise

Quick-Lock applicable

Yes

The fast actuation system can be attached

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

供货范围：

1 x Zero-Point plate

4 x

45570: Clamping Studs, ø 20 mm, for 96 mm bolt distance

4 x

45052-30: Cover Plugs, ø 16 mm, for 52 mm spacing, steel (4 pcs.)

1 x

45000-30: Cover Plug Remover,

Benefits Quick•Point® Multi Plates

Ease of operation Several zero-point positions are actuated with one tightening screw
Expandability Continuous zero-point grid allows across 2 or 4 plates
Utilization of space Complete utilization of the machine table with a multitude of zero-point positions

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.

Learn all about the benefits and functionality of our Quick•Point® zero point clamping system.

Discover now

下载

Data sheet

下载

Services

We will be happy to advise you individually and adapt your products for the best possible application.

Contact us

Set mounting bores according to customer's request

All of our Quick•Point® plates with prefabricated mounting bores are also available without such. The case-hardened zero-point plates (57 HRC, 0.7 mm deep) can be modified to fit almost any machine-tool table.

Set individual keyways

As with individual mounting bores the same applies to keyways. In all plates without a prefabricated mounting bore pattern, keyways can be added for a proper alignment. Suitable accessories such as slot keys and centring studs are available on our website.
