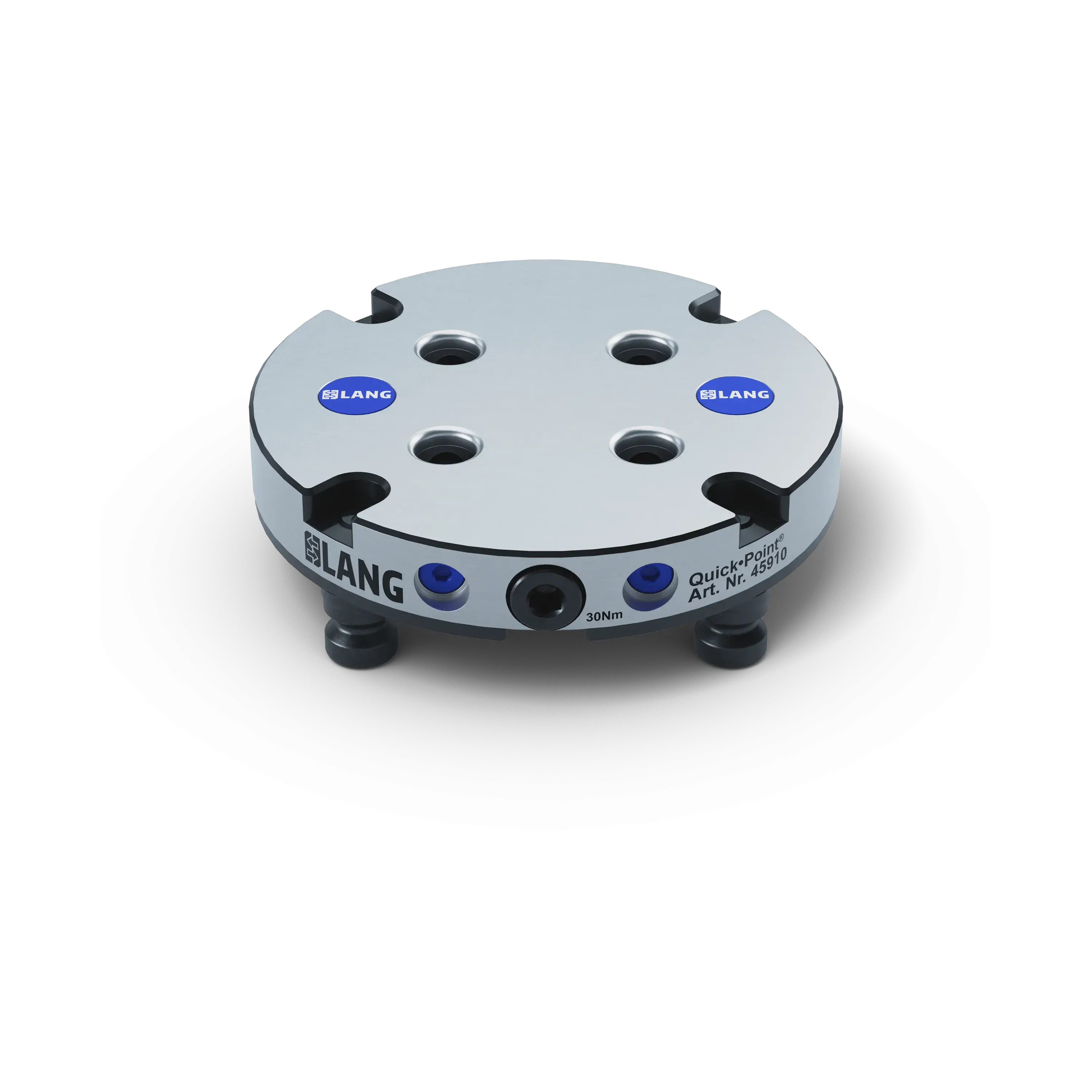

Key data at a glance

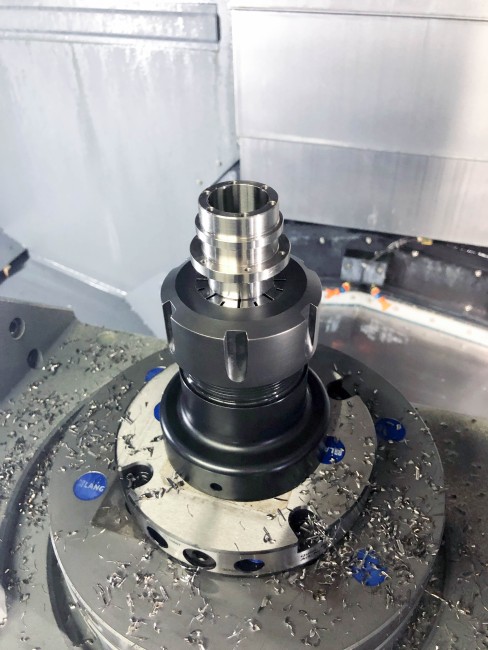

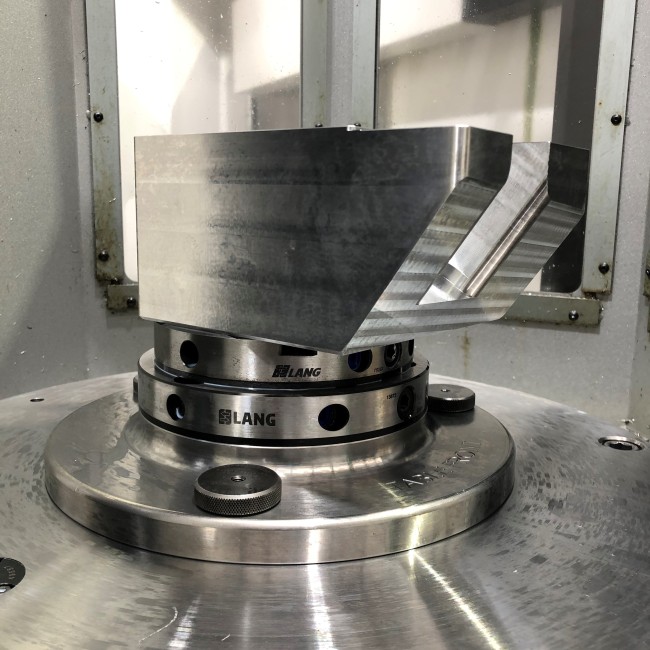

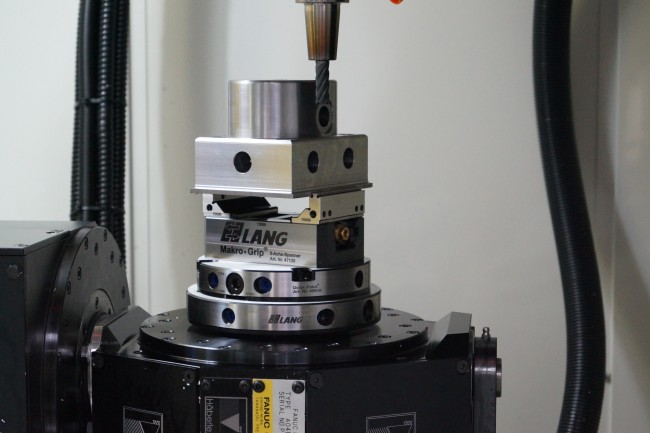

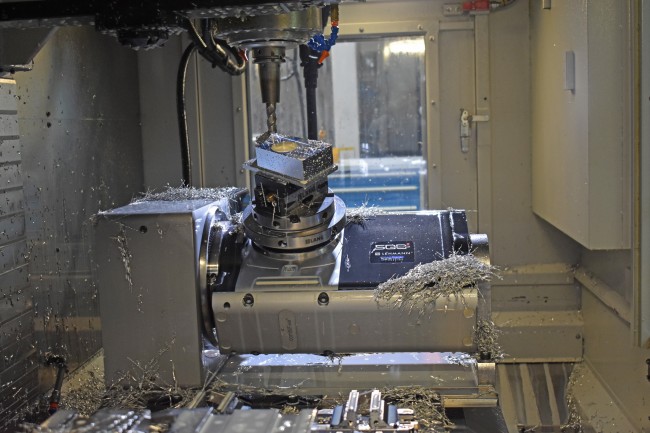

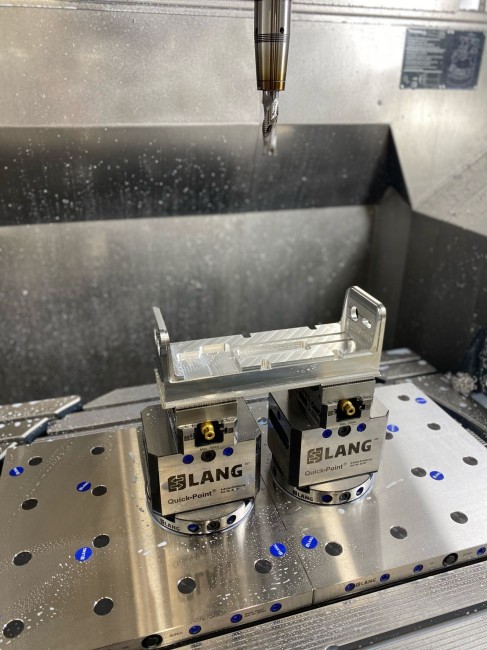

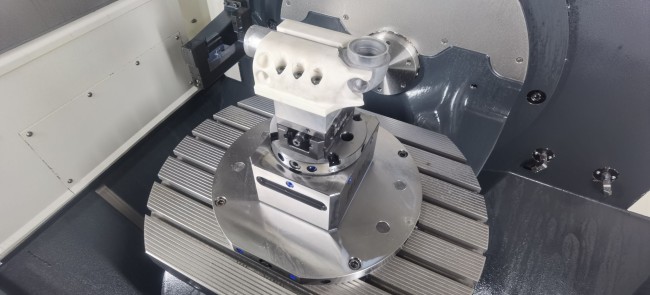

The adapter plate represents the modularity and versatility of the zero point clamping system. It can be used to switch from the large 96 mm grid dimension to the small 52 mm grid dimension if the user has not only large but also small clamping devices in use. In this case, the adapter plate improves accessibility when machining small components due to the raised position of the clamping device.
Dimensions
⌀ 157 x 27 mm (6.18" x 1.06")
Clamping type
Single clamping
Mounting bores
at 100 mm distance
Keyways
20 H7
M5 indexing bores
No, but possible (service)
Packaging Unit
1 Piece
Weight
3.6 kg (7.94 lbs)
Material
Steel
More features:
注意：
By removing the Quick•Point® mounting bolts, a Quick•Point® round plate with part number 45900 is obtained.
供货范围：
1 x Adaptor Plate
2 x Quick•Point® plastic covers ø 20 mm (item number 45008-20)
