Key data at a glance

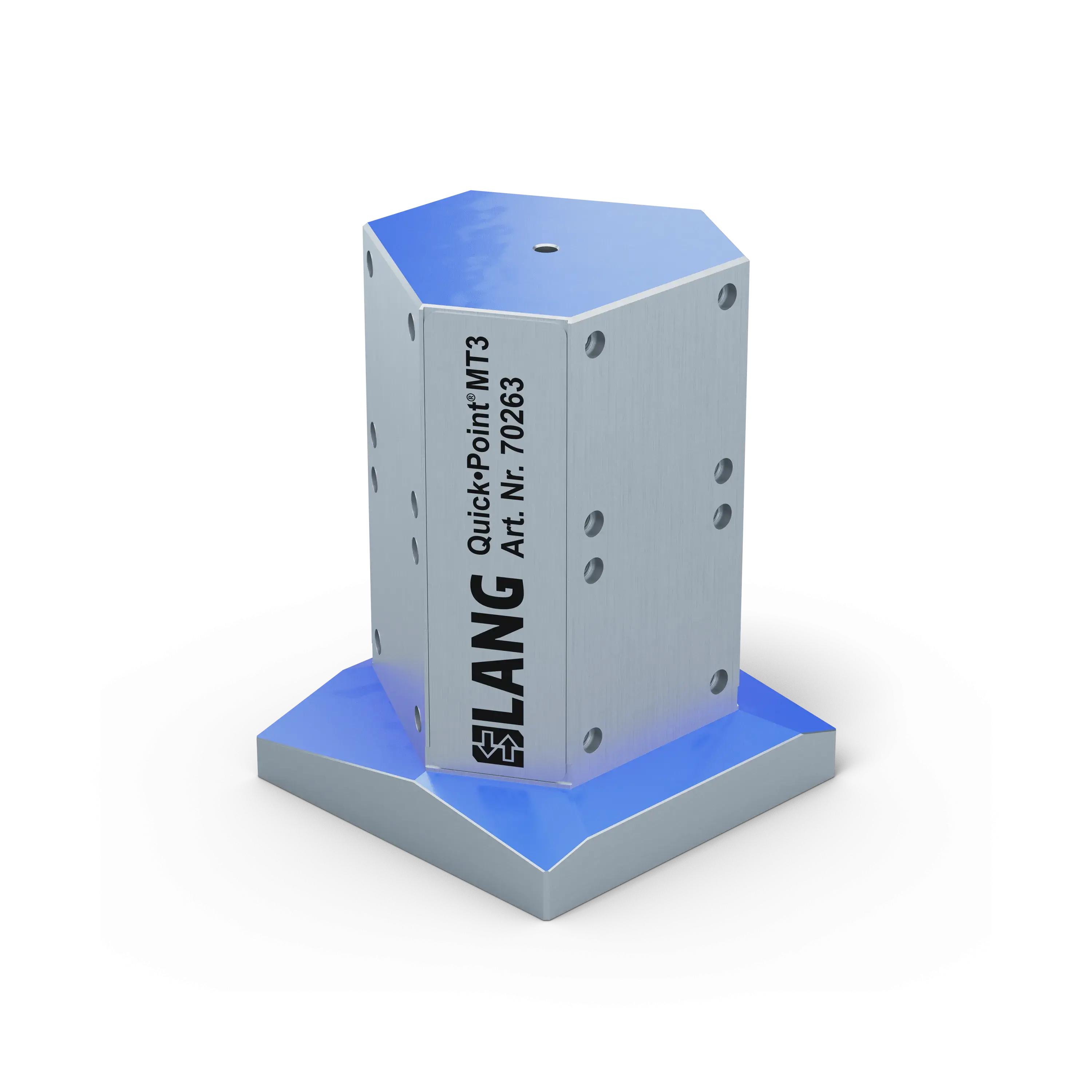

Based on the Quick•Tower clamping tower for horizontal machining centers, the MT3 3-sided clamping tower is an alternative to multiple clamping on smaller 5-axis machines. Two Quick•Point® 52 grid plates or one Quick•Point® 52 2-fold grid plate can be mounted to each of the three side surfaces, allowing a total of six clamping devises to be accommodated.
Dimensions body
140 x 140 mm (5.51" x 5.51")
Dimensions foot
192 x 192 mm (7.56" x 7.56")
Total height
260 mm (10.24")
Number grid plates
6 x 75600 / 3 x 45621
Type of machine
VMC / HMC
Packaging Unit
1 Piece
Weight
43.7 kg (96.34 lbs)
Material
Steel
More features:
