Key data at a glance

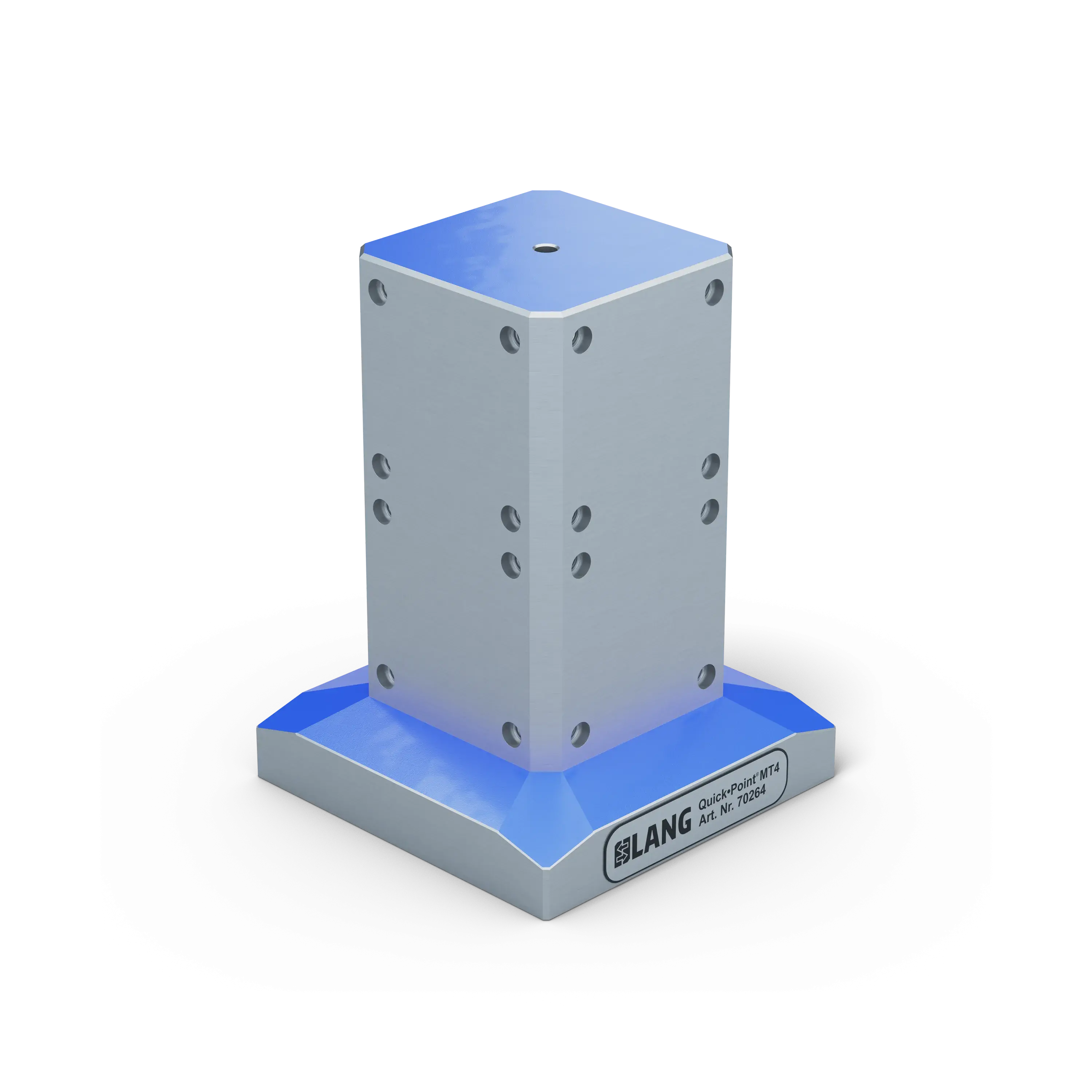

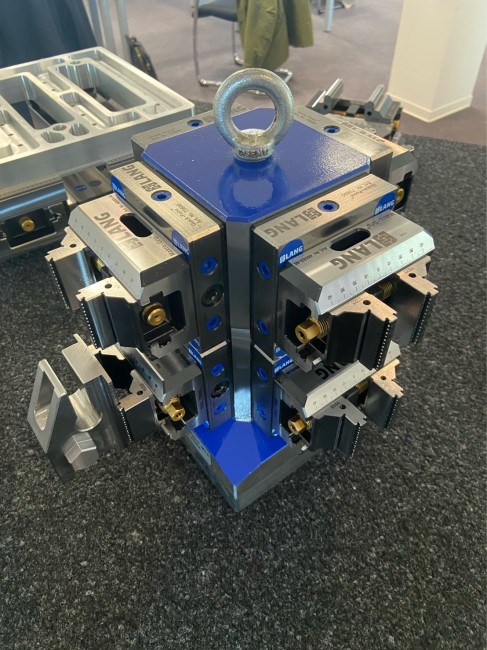

Based on the Quick•Tower clamping tower for horizontal machining centers, the MT4 4-sided clamping tower is an alternative to multiple clamping on smaller 5-axis machines. Two Quick•Point® 52 grid plates or one Quick•Point® 52 2-fold grid plate can be mounted to each of the four side surfaces, allowing a total of eight clamping devises to be accommodated.

Dimensions body

125 x 125 mm (4.92" x 4.92")

Dimensions foot

192 x 192 mm (7.56" x 7.56")

Total height

260 mm (10.24")

Number grid plates

8 x 75600 / 4 x 45621

Type of machine

VMC / HMC

Packaging Unit

1 Piece

Weight

37.1 kg (81.79 lbs)

Material

Steel

More features:

Vise size

46 Micro / 46 / 77

Size of compatible vise

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

供货范围：

1 x 4-face Tombstone

4 x

45570: Clamping Studs, ø 20 mm, for 96 mm bolt distance

1 x eye bolt

Benefits Quick•Point® Multi-Face Fixtures

Increase of machining hours Less downtime and tool changes thanks to multiple clamping
Compactness Also suitable for smaller 5-axis machine tools
Set-up time savings Fast setup and dismantling in the zero-point system

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
