Key data at a glance

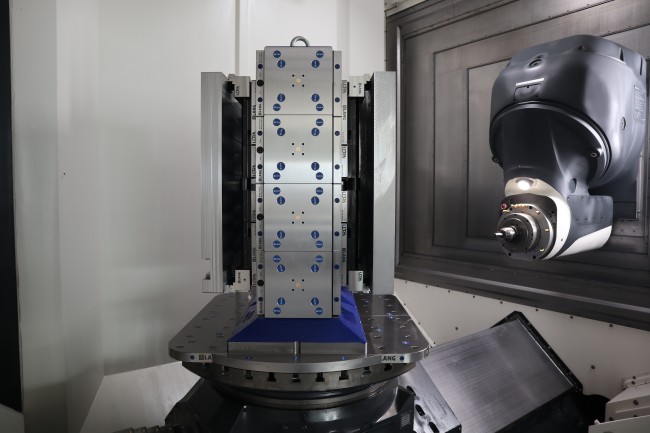

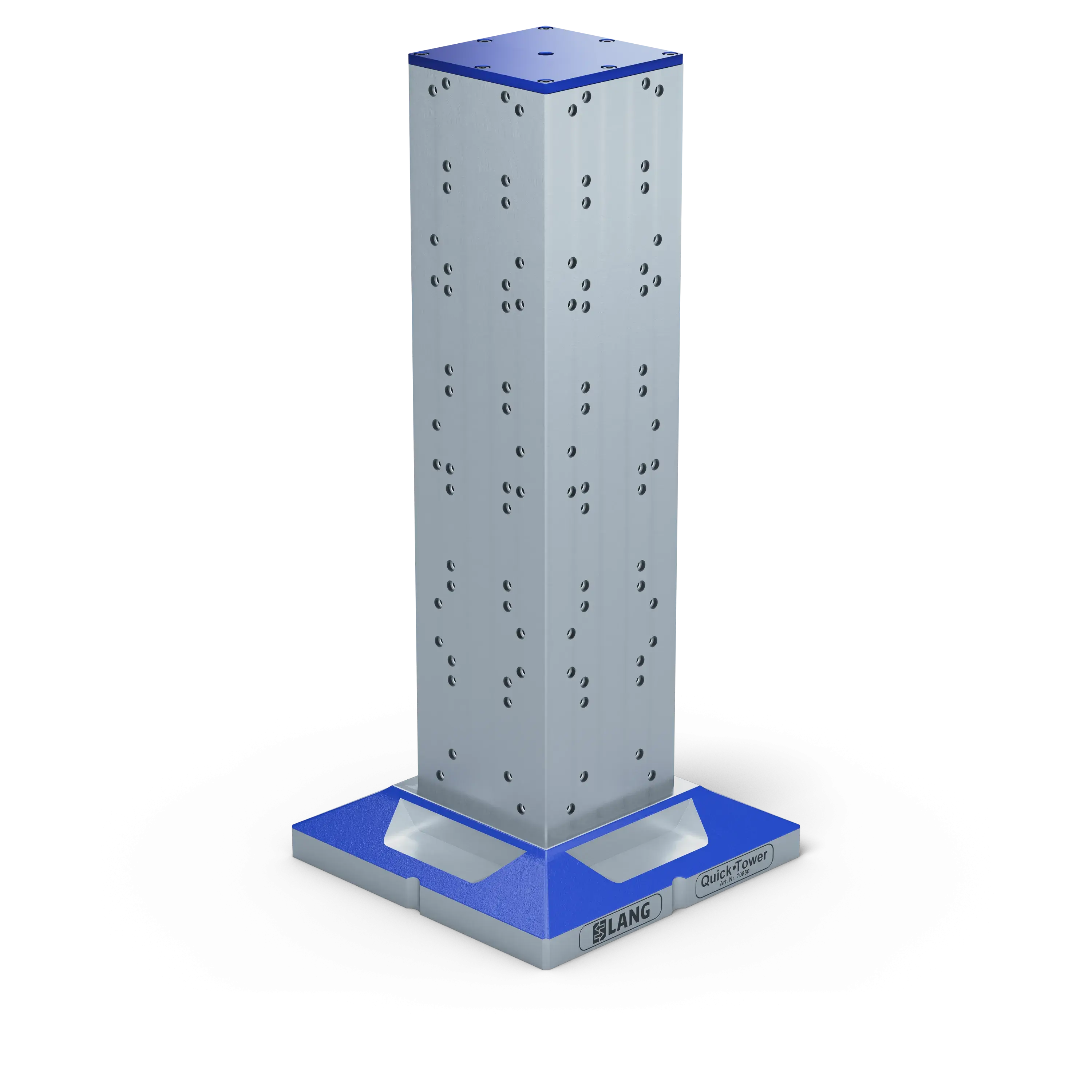

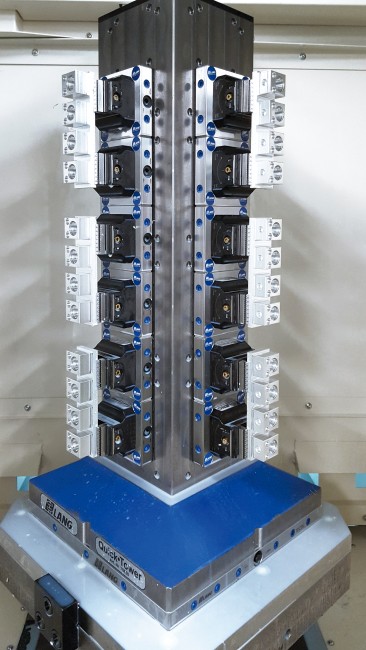

The Quick•Tower clamping tower is a flexible clamping solution thanks to its placement options and high storage capacity, which can be used to increase the machine runtimes of horizontal machining centers enormously. Mounting and dismounting the Quick•Tower is quick and easy thanks to the integrated clamping studs. If the clamping tower is to remain permanently in the machine, direct mounting to the machine table is also possible.
Dimensions body
192 x 192 mm (7.56" x 7.56")
Dimensions foot
384 x 384 mm (15.12" x 15.12")
Total height
860 mm (33.86")
Number grid plates
28 x 75600 / 16 x 75710
Type of machine
HMC
Packaging Unit
1 Piece
Weight
198 kg (436.52 lbs)
Material
Casting
More features:
注意：
Zero-point plates have to be ordered separately. Quick•Tower can be delivered with zero-point plates already equipped.
供货范围：
