Key data at a glance

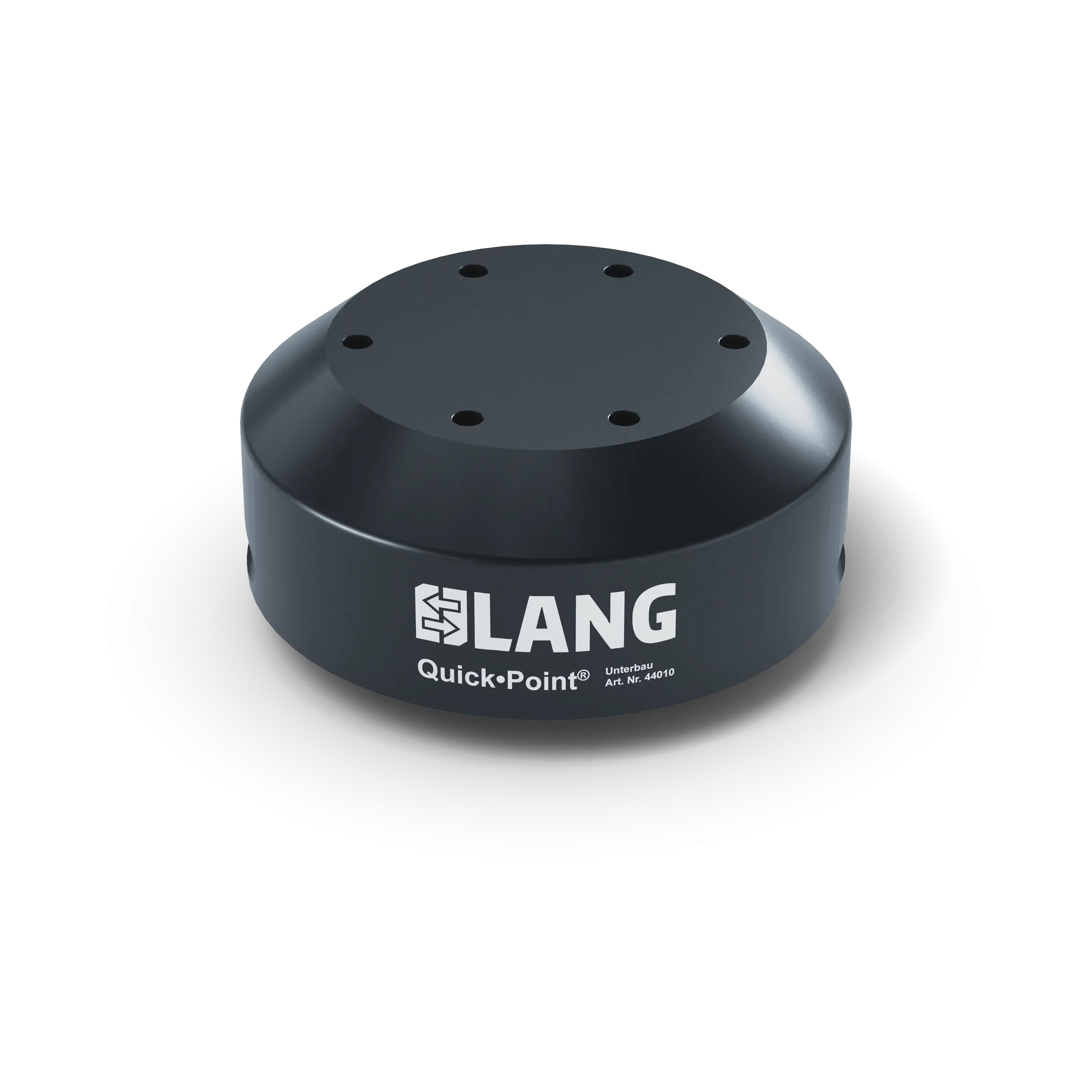

This riser creates additional distance to the machine table and reduces interfering contours in 5-sided machining. The round base is used together with the Quick•Point® zero point plates 45800 or 45480. In addition to this version with a total height of 100 mm, the round riser for the Quick•Point® 96 system is also available with a height of 60 mm.

Dimensions

Diameter top: 176 mm (6.93")
Diameter bottom: 246 mm (9.69")
Height: 100 mm (3.94")

Packaging Unit

1 Piece

Weight

12.4 kg (27.34 lbs)

Material

Aluminum

More features:

Vise size

125

Size of compatible vise

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Riser

4 x

45570: Clamping Studs, ø 20 mm, for 96 mm bolt distance

2 x

45000-09: Bushings, ø 12 x 12 mm, for screw size M 10

6 x Socket head screw M10 x 30

Benefits Quick•Point® Risers

Accessibility Increased accessibility for 5-axis machining
Modularity Fast and precise expansion of the zero-point system on the machine table
Handling Great handling characteristics thanks to low weights

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
