Quick•Point® 96, Riser-德国LANG模块化夹具_零点定位系统_精密虎钳

Key data at a glance

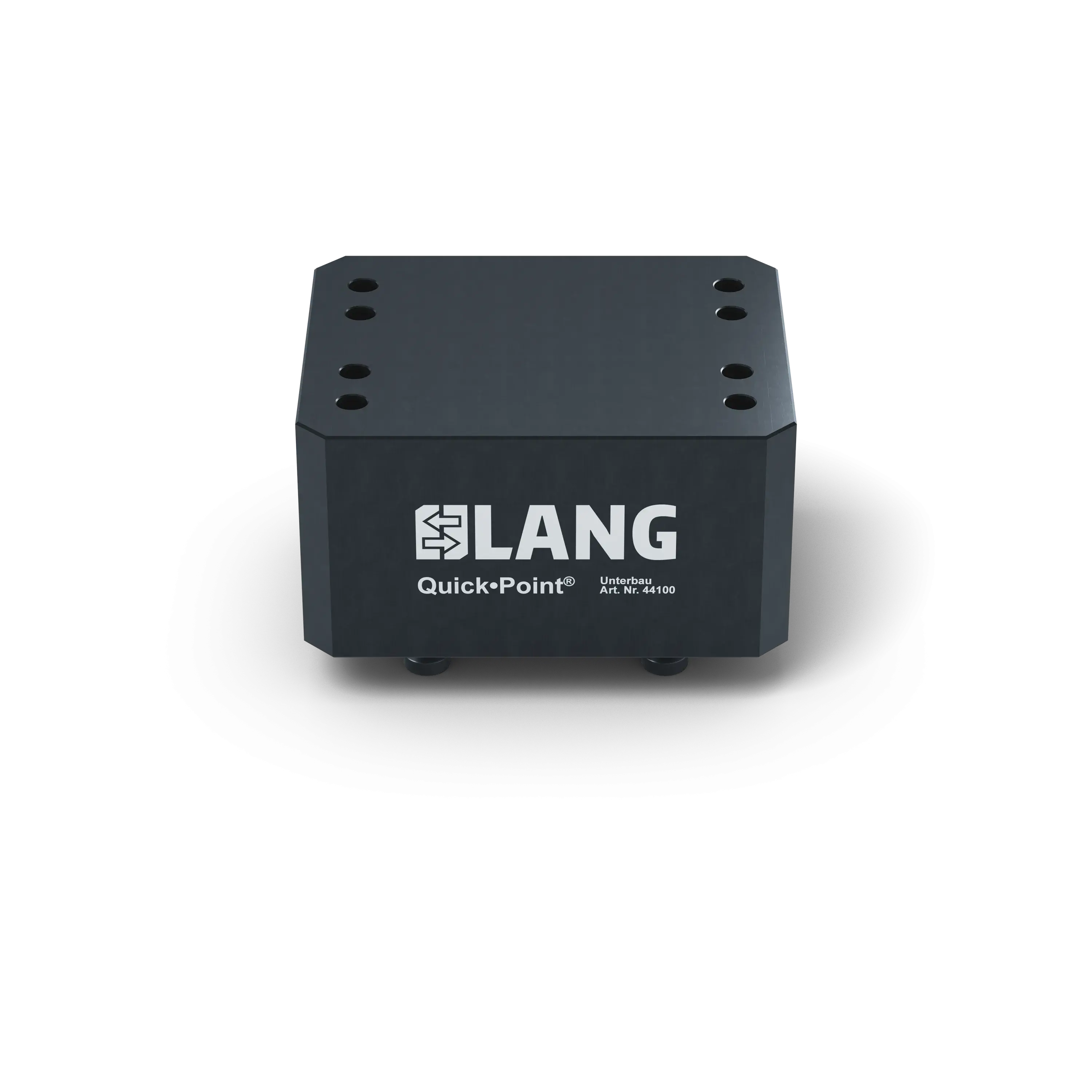

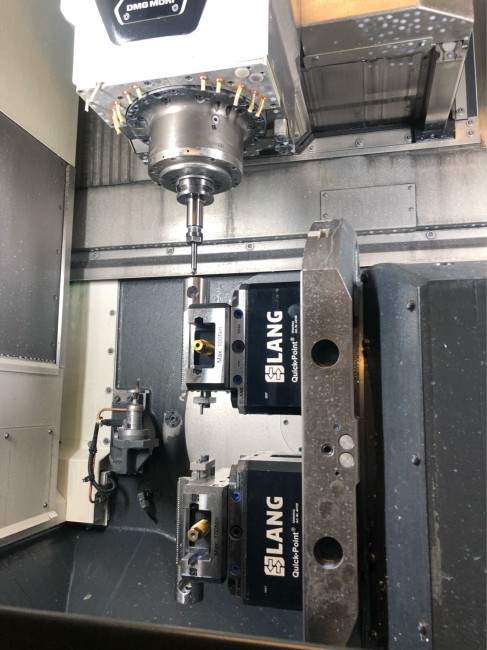

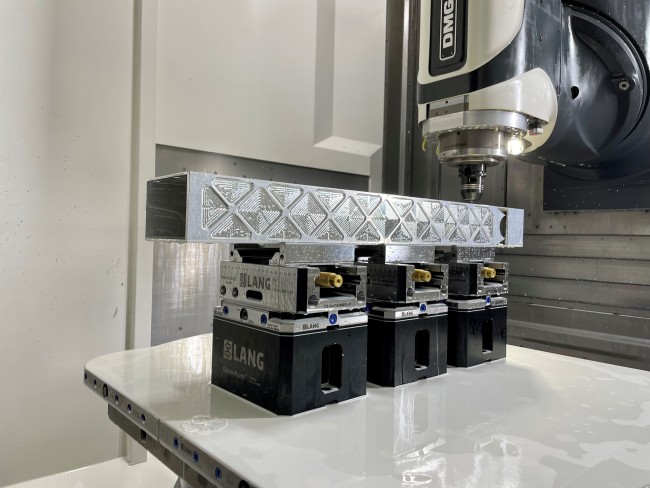

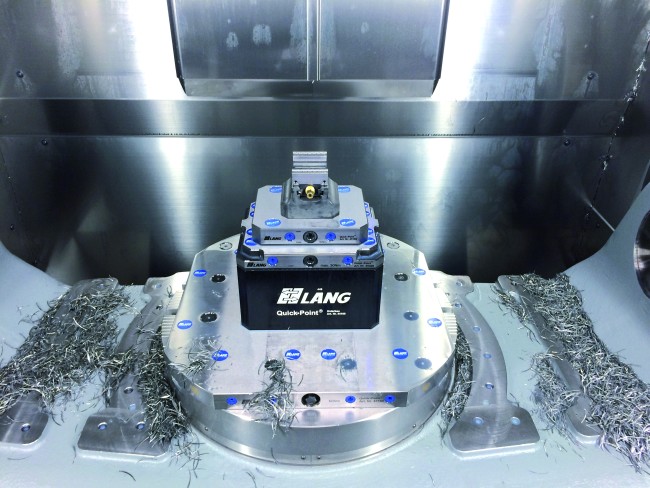

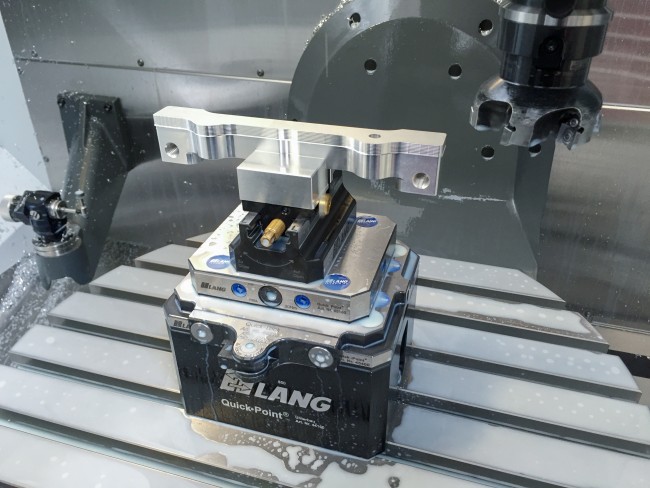

A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 60 and 100 mm. The suitable zero-point plate Item No. 45400 ist pinned, aligned and mounted to the riser via bushings.

Dimensions

192 x 156 x 100 mm (7.56" x 6.14" x 3.94")

Packaging Unit

1 Piece

Weight

8.1 kg (17.86 lbs)

Material

Aluminum

More features:

Vise size

125

Size of compatible vise

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

供货范围：

1 x Riser

4 x

45570: Clamping Studs, ø 20 mm, for 96 mm bolt distance

2 x

45000-09: Bushings, ø 12 x 12 mm, for screw size M 10

4 x Socket head screw M10 x 35

Benefits Quick•Point® Risers

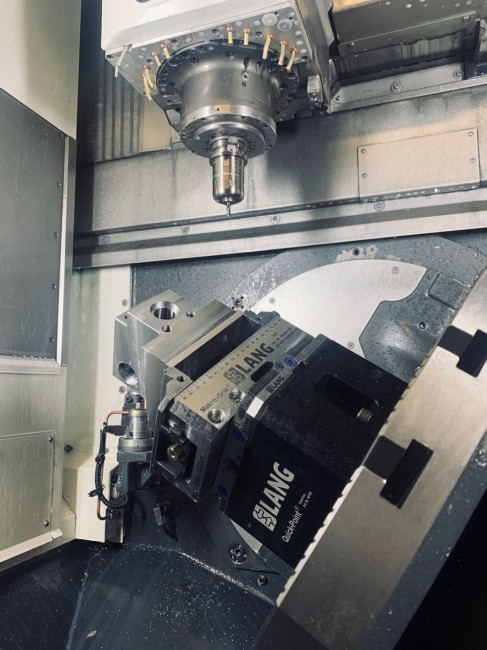

Accessibility Increased accessibility for 5-axis machining

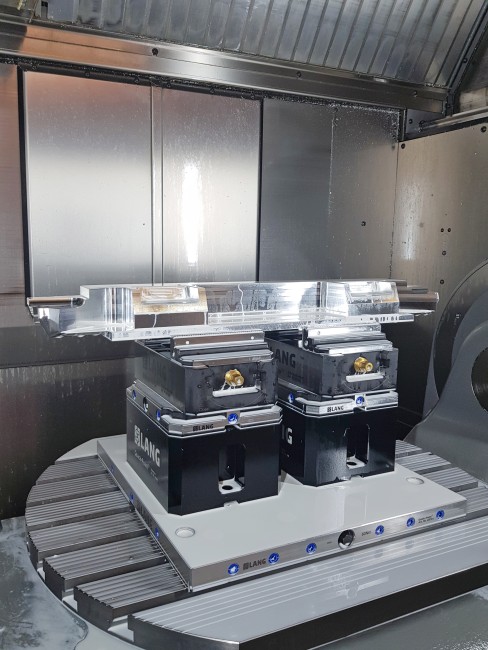

Modularity Fast and precise expansion of the zero-point system on the machine table
Handling Great handling characteristics thanks to low weights

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.
Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.
Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
